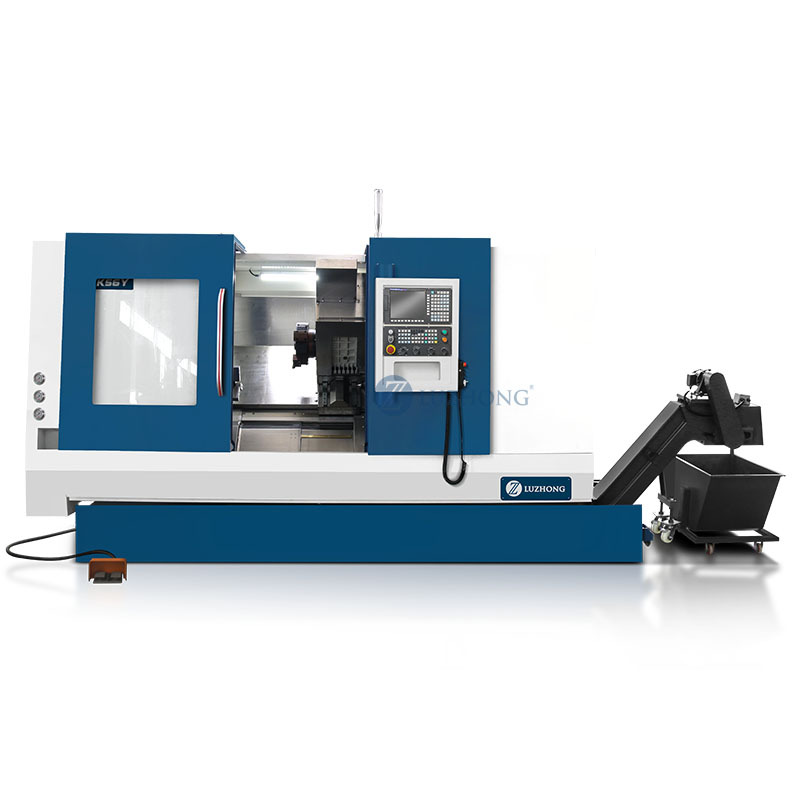

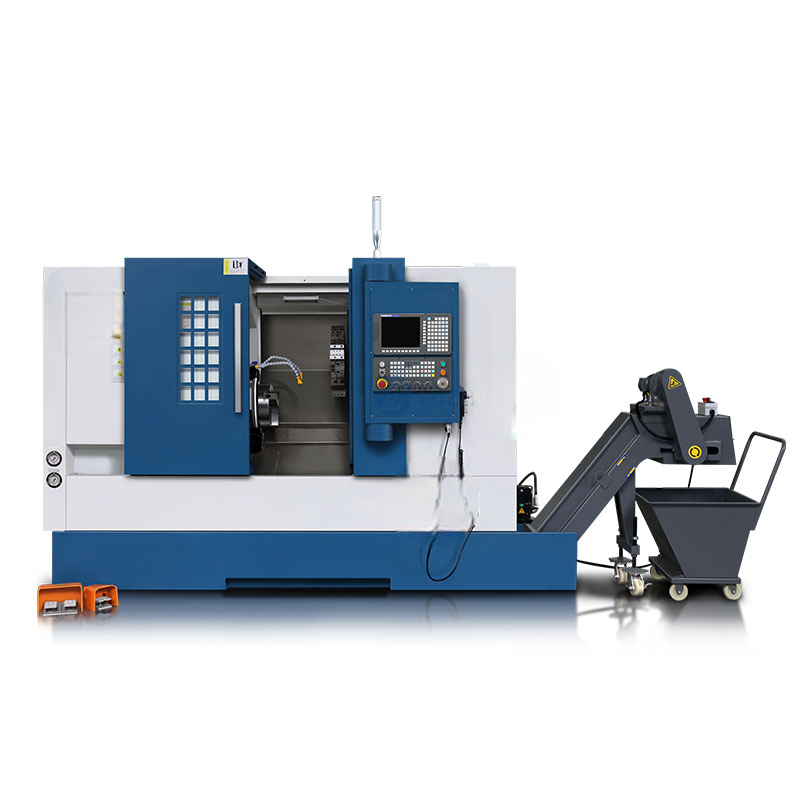

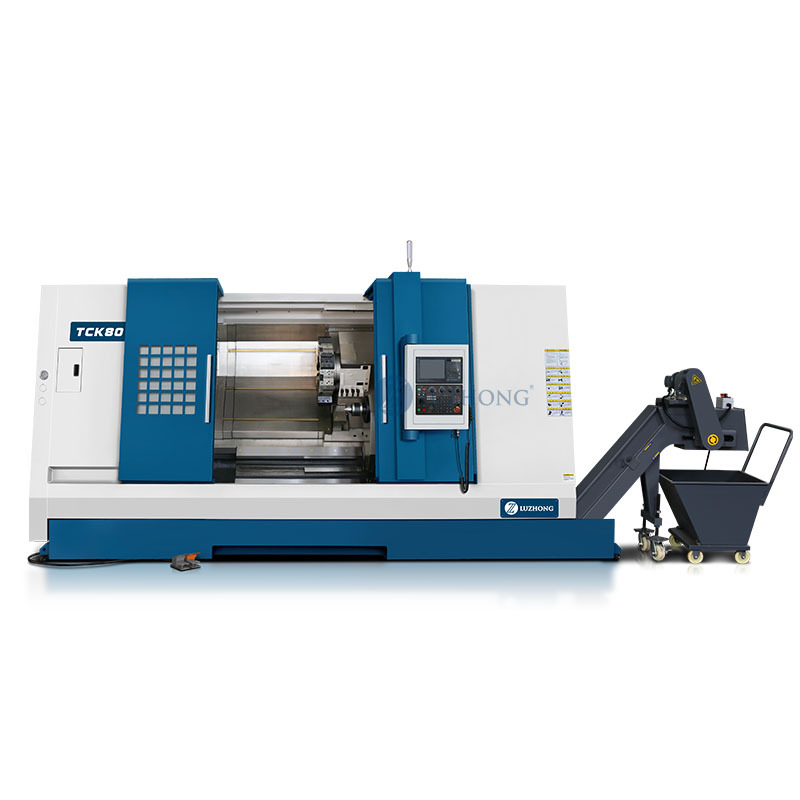

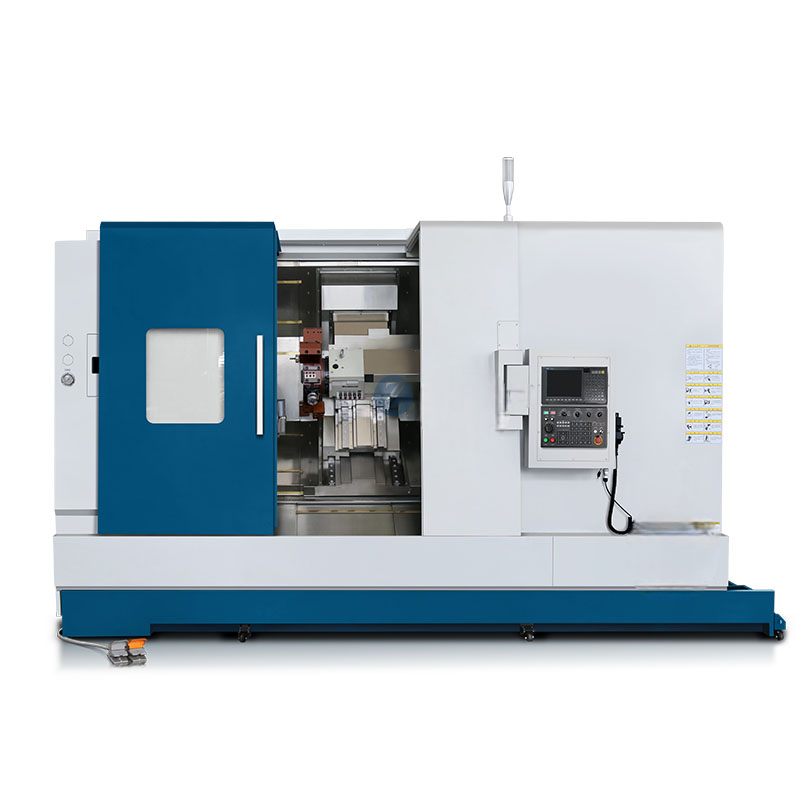

Slant Bed CNC Turning Machine

Name: Slant Bed CNC Turning Machine
Brand: MAXTURN MACHINERY
Price: 2000000 INR
Availability: InStock

Price 2000000 INR/ Unit

Get a Price/Quote

MOQ : 1 Unit

Slant Bed CNC Turning Machine Specification

Product Type
Slant Bed CNC Turning Machine

General Use
Metal Turning, Milling, Grooving, and Threading

Material
Cast Iron Body/Steel Components

Type
Fully Automatic CNC Lathe

Capacity
200 mm to 350 mm swing over bed

Weight (kg)
2000 kg to 4000 kg

Computerized
Yes

Automatic
Yes

PLC Control
Yes (CNC Controller Integrated)

Bar Feeder
Available/Optional

Power Source
Electric

Power Consumption
4 kW to 12 kW (varies with model)

Rigidity
Heavy Duty Structure

Voltage
380V/415V

Motor
AC Servo Motor

Table Size
Not Applicable (with Chuck/Collet System)

Spindle Speed
Up to 4000 RPM

Axial Choice
2 Axis (X, Z)

Dimension (L*W*H)
Varies, typically 2200mm x 1500mm x 1700mm

Feature
High Precision, Enclosed Structure, Coolant System, Chip Conveyor

Color
Standard Blue-White/Custom Available

Max Turning Length
Typically up to 500 mm

Display
LCD/Touch Screen Interface

Positioning Accuracy
0.005 mm

Software Support
G-code, Conversational Programming

Supported Operations
Turning, Boring, Knurling, Facing, Thread Cutting

Lubrication
Automatic Centralized Lubrication System

Repeatability
0.003 mm

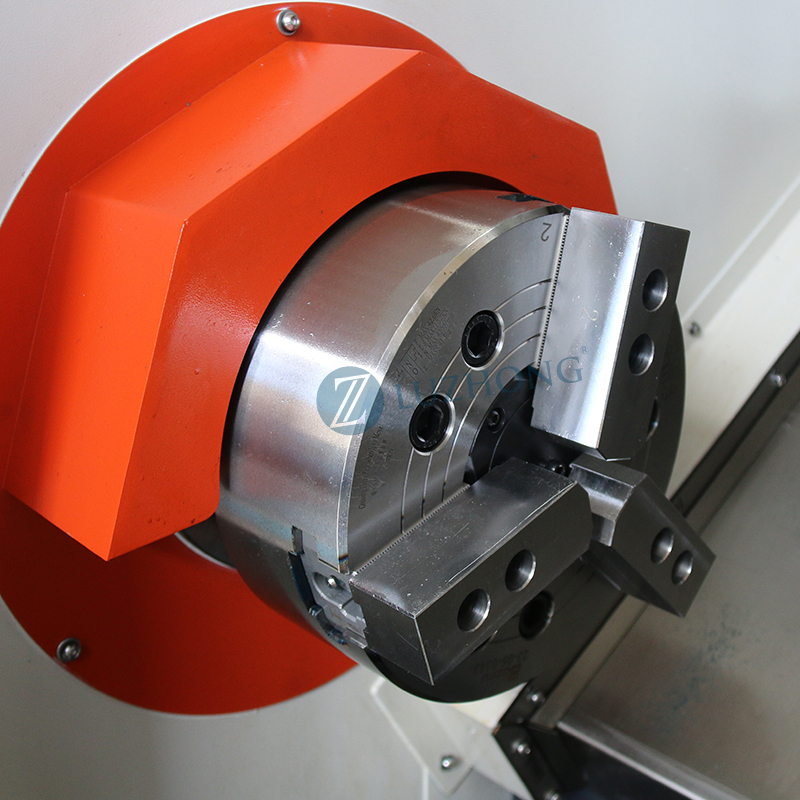

Chuck Size
Minimum 150 mm, Maximum 300 mm

Operating Environment
Industrial Workshop

Tailstock
Programmable/Manual

Safety Features
Fully Enclosed Guard, Door Interlocks, Emergency Stop

Main Spindle Bore
42 mm to 65 mm

Control System
Fanuc/Siemens/Mitsubishi (optional)

Tool Turret
8/12 Station Turret

Cooling System
Integrated

Slant Bed CNC Turning Machine Trade Information

Minimum Order Quantity
1 Unit

Delivery Time
10-15 Days

Slant Bed CNC Turning Machine About

A slant bed machine (typically a CNC turning center) features an angled bed or base, usually inclined between 30 and 60. This design improves structural rigidity, uses gravity for superior chip evacuation, and offers ergonomic operator access for faster tool changes and setups

Precision Engineering for Industrial Applications

Designed for the demands of professional workshops, the Slant Bed CNC Turning Machine delivers exceptional performance in metal shaping and finishing. Its high positioning accuracy and repeatability ensure consistent results, making it ideal for manufacturing where tolerances are critical. The machine's robust construction, integrated features like automatic lubrication, and versatile software support contribute to seamless operation.

Flexible Automation and Advanced Control Systems

Choose between leading-edge control panels from Fanuc, Siemens, or Mitsubishi, all offering user-friendly LCD or touch screen interfaces. With support for both G-code and conversational programming, the CNC lathe streamlines setup for complex turning, boring, and threading operations. Full PLC integration and automated tool change via an 8/12 station turret enable high productivity in automated and manual production runs.

Safety, Efficiency, and Low Maintenance

Enjoy peace of mind with comprehensive safety features including enclosed guards, door interlocks, and emergency stop functions. The integrated cooling system prevents overheating, while automatic centralized lubrication minimizes maintenance downtime. Rugged design and reliable chip conveyor ensure extended machine life even under continuous industrial use.

FAQ's of Slant Bed CNC Turning Machine:

Q: How does the Slant Bed CNC Turning Machine achieve high precision in metalworking?

A: The machine offers a positioning accuracy of 0.005 mm and repeatability of 0.003 mm. Its heavy-duty construction, precision servo motors, and advanced control systems collectively enable consistently accurate and reliable machining.

Q: What operations can be performed on this CNC lathe?

A: The Slant Bed CNC Turning Machine is versatile, supporting a wide range of operations such as turning, boring, knurling, facing, milling, grooving, and thread cutting. This makes it suitable for various metalworking tasks in an industrial workshop.

Q: When should I use the automatic lubrication and integrated cooling systems?

A: Both systems are designed for continuous, automatic operation to ensure optimal machine performance and longevity. They work in real-time during machine run-time, eliminating the need for manual intervention and reducing maintenance intervals.

Q: Where is this CNC machine commonly installed and operated?

A: This machine is specifically designed for installation in industrial workshops, manufacturing plants, and metalworking facilities across India and internationally. Its robust structure and enclosed design make it suitable even for demanding production environments.

Q: What are the safety features included with this CNC turning machine?

A: The system is equipped with a fully enclosed guard, door interlocks, and an emergency stop mechanism to ensure operator safety during operation. These features are essential for meeting industrial safety standards.

Q: How does the bar feeder accessory enhance the machine's process?

A: The optional bar feeder allows for automated material loading, significantly increasing production efficiency and enabling uninterrupted long-cycle machining, particularly useful in high-volume manufacturing applications.

Q: What are the benefits of choosing between different control systems?

A: Offering control options like Fanuc, Siemens, or Mitsubishi allows users to select a familiar, preferred, or most compatible interface. This flexibility enhances productivity, optimizes programming efficiency, and meets diverse operator requirements.
