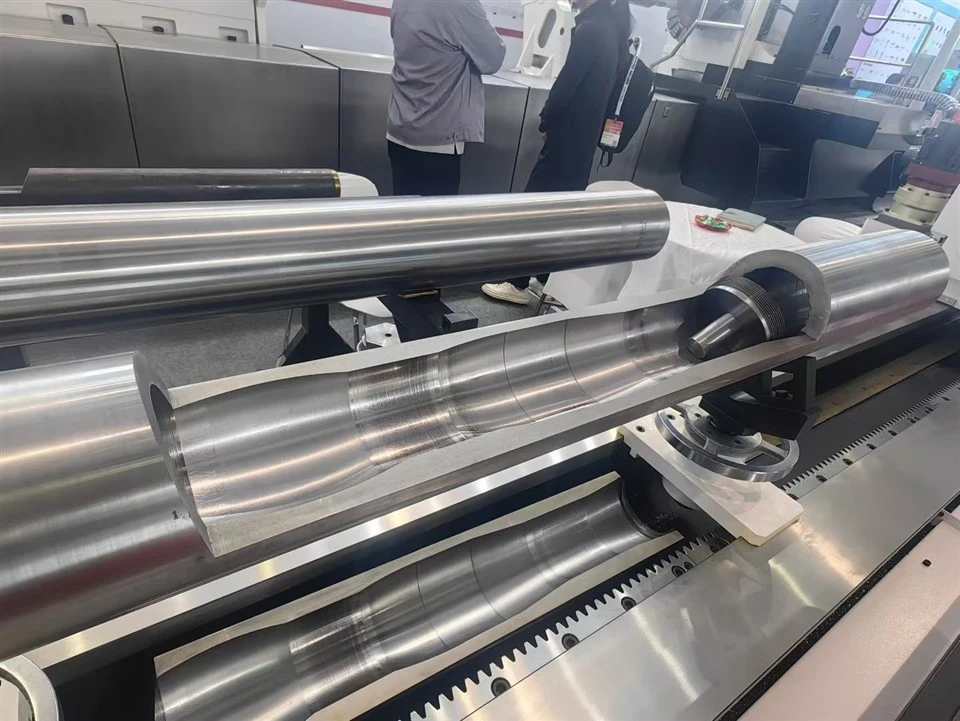

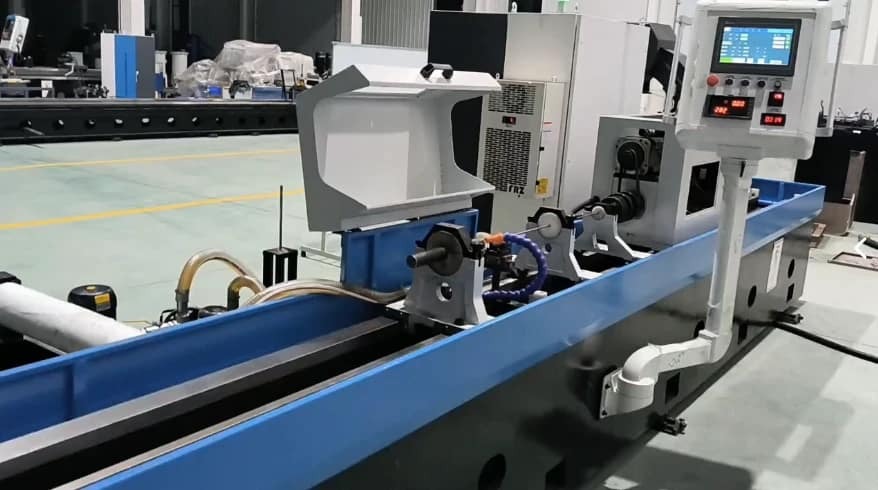

CNC Deep Hole Drilling And Boring Machine

Name: CNC Deep Hole Drilling And Boring Machine
Brand: MAXTURN MACHINERY
Price: 7000000 INR
Availability: InStock

Price 7000000 INR/ Number

Get a Price/Quote

MOQ : 1 Number

CNC Deep Hole Drilling And Boring Machine Specification

Product Type
CNC Deep Hole Drilling and Boring Machine

General Use
Deep hole drilling and boring for heavy engineering, mold, and automotive industries

Material
Robust Cast Iron and Steel Frame

Type
CNC Horizontal Drilling and Boring Machine

Capacity
Drill diameter typically 20 - 250 mm, depth up to 6000 mm

Weight (kg)
8000-15000 kg (depends on size and configuration)

Computerized
CNC Controlled

Automatic
Fully Automatic Operation

PLC Control
Yes

Bar Feeder
Automatic Bar Feeding System

Power Source
Electric

Power Consumption
18-30 kW (depends on model)

Rigidity
High Structural Rigidity

Voltage
380V/415V

Motor
AC Servo / Spindle Motor

Table Size
Customizable or as per model specification

Spindle Speed
Variable, up to 1500 rpm

Axial Choice
CNC Multi-Axis (X, Y, Z available)

Dimension (L*W*H)
Approx. 7000mm 1800mm 2200mm (customizable)

Feature
High Precision Drilling and Boring, Heavy Duty Construction, Deep Hole Capabilities

Color
White and Blue

Safety Feature
Emergency stop, Operator safety shields

Application
Suitable for oil & gas, mining, hydraulic cylinder manufacturing, aerospace.

Spindle Drive
Precision spindle with automatic lubrication

Bed Structure
One-piece heavy-duty machine bed for vibration reduction and stability

Repeatability
0.005 mm

CNC System Brand
Siemens / Fanuc / Customized

Tailstock
Hydraulically operated

Coolant System
High-pressure coolant supply for deep hole drilling

Positioning Accuracy
0.01 mm

Control Panel
Ergonomic CNC control interface

CNC Deep Hole Drilling And Boring Machine About

A deep hole drilling machine is a specialized industrial tool engineered to create very long, narrow holes in metals and alloys, typically defined as having a depth-to-diameter ratio greater than 10:1. These machines prioritize straightness, precise tolerances, and superior surface finishes through high-pressure coolant systems and dedicated chip evacuation mechanisms

Optimized Performance and Precision

Engineered for deep hole drilling and boring, this machine achieves drill diameters from 20 mm to 250 mm and depths up to 6000 mm. The automatic lubrication of the spindle and high-pressure coolant system enhance tool life and precision, supporting high-speed drilling and boring operations with variable spindle speeds up to 1500 rpm. The machine meets the rigorous demands of heavy engineering and mold manufacturing.

Advanced Safety and Ergonomics

Operator safety is paramount, ensured via emergency stop functions, protective shields, and easy-to-use CNC control panels. The sturdy design and hydraulic tailstock further augment safety and ease of use during even the most challenging jobs. The control interface (Siemens, Fanuc, or custom options) is ergonomically designed for operator efficiency and programming ease.

Versatile Applications Across Industries

This CNC machine is suitable for manufacturing sectors such as oil & gas, mining, aerospace, automotive, and hydraulic cylinder production. With customizable table sizes and configuration options, it adapts to diverse requirements, making it an indispensable tool for professionals seeking reliable, high-performance deep hole drilling and boring.

FAQ's of CNC Deep Hole Drilling And Boring Machine:

Q: How does the high-pressure coolant system benefit deep hole drilling operations?

A: The high-pressure coolant system delivers coolant directly to the drilling area, enhancing heat dissipation and chip evacuation. This helps maintain tool sharpness, improves boring accuracy, and significantly extends tool life, especially important when working with deep holes.

Q: What industries commonly use this CNC Deep Hole Drilling and Boring Machine?

A: This machine is widely used in oil & gas, mining, aerospace, automotive, and hydraulic cylinder manufacturing. Its versatility accommodates the tight tolerances and deep bore requirements typical of these sectors.

Q: Where can the machine be installed and who can operate it?

A: The machine is best suited for industrial settings with adequate floor space and electric supply (380V/415V). It can be operated by trained personnel familiar with CNC systems; the intuitive Siemens/Fanuc control panel simplifies programming and day-to-day operation.

Q: What is the process for drilling deep holes using this machine?

A: After securely clamping the workpiece, the machine automatically positions the drilling tool using the CNC interface. The high-pressure coolant is activated, and the precision spindle starts drilling at the programmed speed. The hydraulic tailstock supports the workpiece, ensuring accuracy and safety throughout the process.

Q: When is it recommended to use a CNC Deep Hole Drilling and Boring Machine over conventional machines?

A: It is recommended when precision, depth, and repeatability are critical, such as drilling holes deeper than their diameter or creating complex bore profiles. The machine's high structural rigidity and precision controls make it ideal for heavy engineering and production environments.

Q: What are the key benefits of the automatic bar feeder and spindle lubrication system?

A: The automatic bar feeder streamlines material handling, supporting continuous and efficient production with minimal downtime. The automatic lubrication system prolongs spindle life by reducing wear and ensuring consistent operation, even during extended production cycles.
