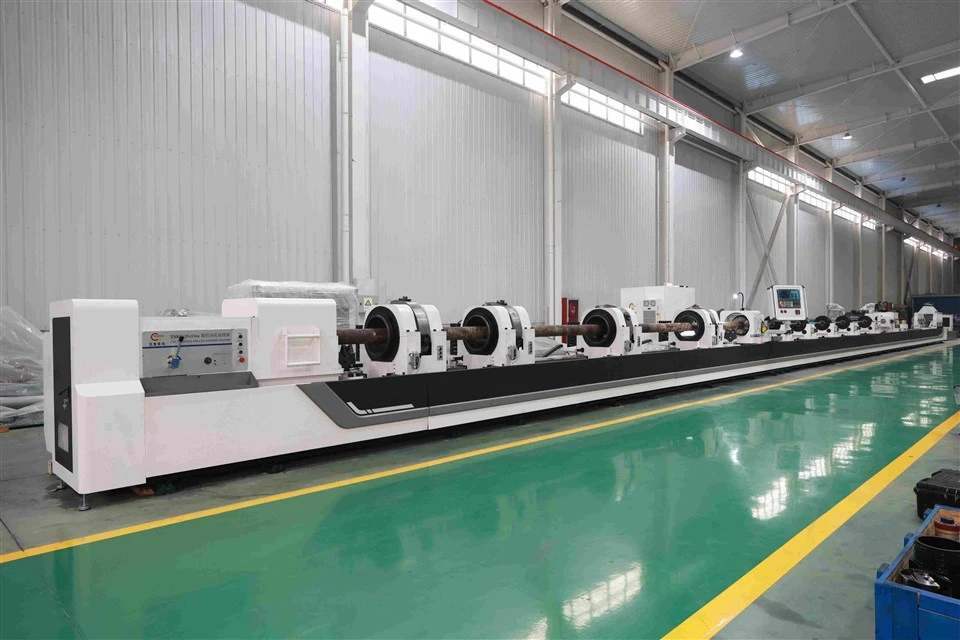

Deep Hole Drilling And Boring Machine

Name: Deep Hole Drilling And Boring Machine
Brand: MAXTURN MACHINERY
Price: 7000000 INR
Availability: InStock

Price 7000000 INR/ Unit

Get a Price/Quote

MOQ : 1 Unit

Deep Hole Drilling And Boring Machine Specification

Product Type
Deep Hole Drilling and Boring Machine

General Use
Drilling and deep-boring of long metal components

Material
High-grade cast iron / steel

Type
Horizontal Bed Type, CNC compatible

Capacity
Deep drilling up to 2000 mm; bore diameter up to 200 mm (depending on model)

Weight (kg)
Approx. 10,000 - 25,000 kg

Computerized
Yes (CNC and PLC compatible)

Automatic
Full/partial automation supported

PLC Control
Yes (with modern control panel options)

Bar Feeder
Available (Automatic bar feeding system)

Power Source
Electric

Power Consumption
Depends on Model; typically 10-20 kW

Rigidity
High structural rigidity for heavy duty drilling

Voltage
380V / 415V, 3 Phase

Motor
Precision main drive motor, high-torque

Table Size
Customized as per model, typically large bed for long workpiece

Spindle Speed
Up to 3000 RPM (depends on model)

Axial Choice
Multiple axis (X, Y, Z)

Dimension (L*W*H)
Typically 8000 x 2000 x 1800 mm (varies with model)

Feature
Heavy-duty, high-precision, automatic lubrication, coolant system

Color
White & Black (custom colors on request)

Safety Features
Emergency stop, overload protection, safety interlocks

Control Interface
User-friendly, touch-screen HMI

Coolant System
Integrated high-pressure coolant delivery to cutting zone

Guideways
Hardened and ground linear guideways for precision

Lubrication
Centralized automatic lubrication system

Workpiece Clamping
Hydraulic clamping and tailstock support

Precision
High-accuracy repeatability: 0.02 mm

Function
Suitable for gun drilling, BTA drilling, ejector drilling, and boring

Chip Removal System
Automatic chip conveyor

Optional Accessories
Tool presetter, probe systems, bar loader extensions

Drill Feed
Automatic feed adjustment based on material

Deep Hole Drilling And Boring Machine About

A deep hole drilling and boring machine is a specialized CNC system designed to create, enlarge, or refine extremely deep, narrow holes (often with depth-to-diameter ratios exceeding 10:1). Essential across aerospace, automotive, and defense industries, it uses high-pressure coolant and specialized tooling to maintain perfect straightness, dimensional accuracy, and superior surface finishes

Enhance Productivity with Heavy-Duty Deep Hole Drilling

This CNC- and PLC-compatible machine delivers precision up to 0.02 mm and is designed for demanding drilling and boring applications in metalworking. Its integrated coolant system, automatic chip conveyor, and centralized lubrication ensure optimal performance and reduce maintenance downtime. The customizable table size and adaptable clamping systems make it ideal for both small batches and continuous production environments.

Advanced Automation and User-Friendly Interface

Operate with ease using the intuitive touch-screen HMI, allowing for precise control over all drilling parameters. Automated feed adjustment and bar feeding streamline complex processes, reducing operator intervention and ensuring consistent, high-quality results. Safety is prioritized with robust emergency stops, overload protection, and interlocking systems.

FAQ's of Deep Hole Drilling And Boring Machine:

Q: How does the integrated high-pressure coolant system benefit the drilling process?

A: The integrated high-pressure coolant system effectively dissipates heat from the cutting zone, improves tool lifespan, and enhances chip evacuation. This allows for stable deep hole drilling with minimized thermal deformation, leading to precise, consistent results.

Q: What applications can this deep hole drilling and boring machine handle?

A: This machine is suitable for a range of precision drilling operations, including gun drilling, BTA drilling, ejector drilling, and boring of long metal components. It is ideal for manufacturers in industries requiring deep, straight bores such as automotive, aerospace, and heavy machinery.

Q: When should the automatic feed adjustment be used?

A: The automatic feed adjustment feature should be engaged whenever drilling materials of varying hardness or when consistent cutting performance is required. This function ensures optimal feed rates, protects tooling, and maintains bore quality throughout the process.

Q: Where is this machine most commonly installed and utilized?

A: These machines are most commonly found in specialized manufacturing facilities, metalworking shops, and production plants across industries like automotive, defense, and oil & gas, especially where long or deep bore drilling in metal components is critical.

Q: What processes are streamlined by the automatic chip conveyor and centralized lubrication system?

A: Automatic chip removal maintains a clean work area and prevents tool damage, while the centralized lubrication system automatically delivers the right amount of oil to guideways and moving parts, reducing manual maintenance and increasing machine uptime.

Q: How does the system ensure operator safety?

A: The machine integrates multiple safety features including emergency stop buttons, overload protection, and safety interlocks. These systems work together to reduce risk, halt operations in case of anomalies, and safeguard both the operator and the equipment.

Q: What are the key benefits of choosing this machine for deep bore applications?

A: Customers gain reliable, high-precision performance with automated convenience, reducing manual intervention while achieving superior hole accuracy. Its robust construction, flexible customization, and advanced control interfaces ensure productivity and longevity, making it a valuable investment for demanding metalworking applications.
