CNC Drilling Machine For Boiler Header Pipe

Name: CNC Drilling Machine For Boiler Header Pipe
Brand: MAXTURN MACHINERY
Price: 25000000 INR
Availability: InStock

Price 25000000 INR/ Number

Get a Price/Quote

MOQ : 1 Number

CNC Drilling Machine For Boiler Header Pipe Specification

Product Type
CNC Drilling Machine for Boiler Header Pipe

General Use
Drilling of high pressure boiler header pipes

Material
Mild steel, alloy steel, stainless steel compatibility

Type
Horizontal CNC Drilling Machine

Capacity
Suitable for heavy and large diameter boiler headers

Weight (kg)
Approx. 10000 - 20000 kg (depends on customization)

Computerized
Yes

Automatic
Fully automatic operation

PLC Control
Integrated advanced PLC system

Bar Feeder
Available

Power Source
Electric

Power Consumption
High efficiency, customizable per project

Rigidity
Heavy-duty structure for stable operations

Voltage
380V / 415V (customized available)

Motor
High torque spindle motor

Table Size
Large working table suited for header pipes

Spindle Speed
Variable Speed, programmable

Axial Choice
3-axis or as per requirement

Dimension (L*W*H)
Customizable to client needs

Feature
Precision drilling, automated control, robust build

Color
Standard industrial grey/white or customizable

Drilling Diameter Range
30 mm - 120 mm

Repeatability
0.02 mm

Controller System
Fanuc/Siemens/Mitsubishi/national options available

Sound Level
Low-noise, less than 80 dB

Max. Drilling Length
Up to 12000 mm (customizable)

Installation Service
On-site installation and training available

Operational Interface
User-friendly touchscreen HMI

Tool Magazine
Automatic tool changer (optional)

Safety Features
Emergency stop, interlocked safety guards

Clamping System
Hydraulic automatic clamping

Application Industry
Power plants, pressure vessels, boiler fabricators

Cooling System
Automatic, integrated coolant supply

CNC Drilling Machine For Boiler Header Pipe About

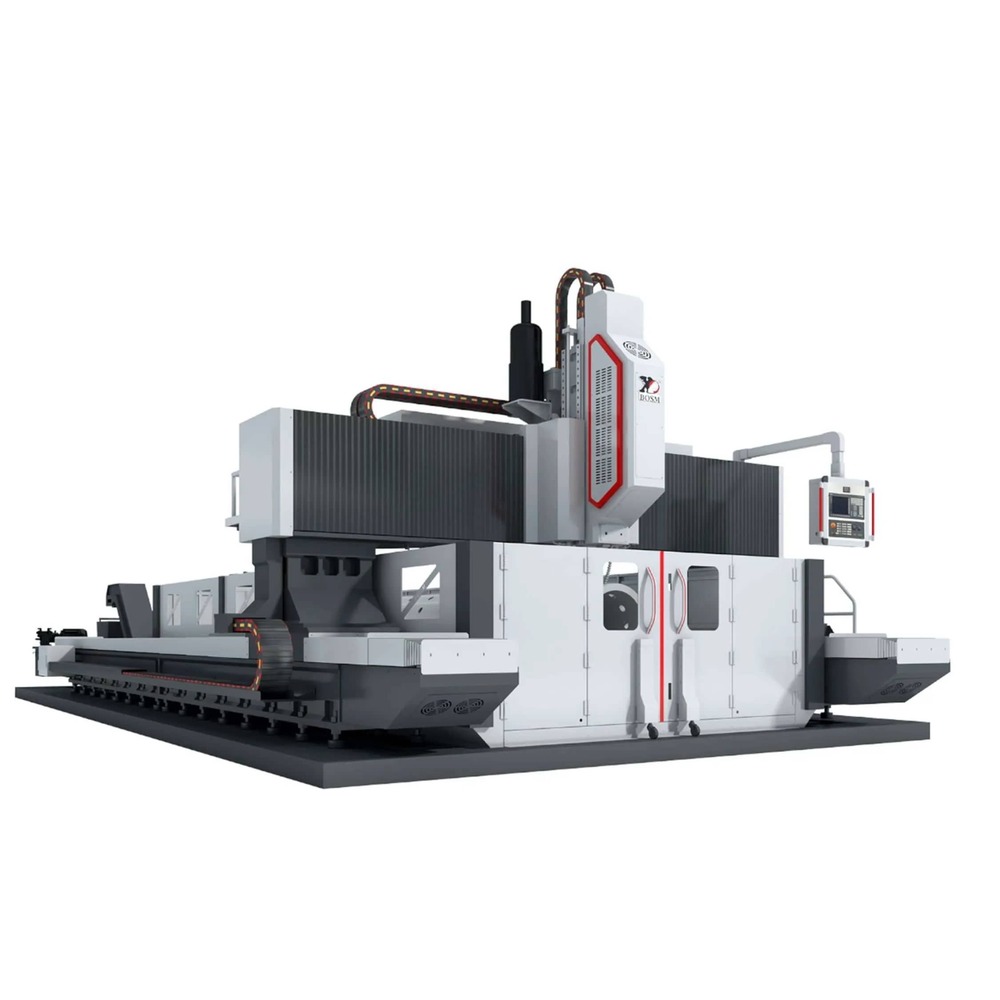

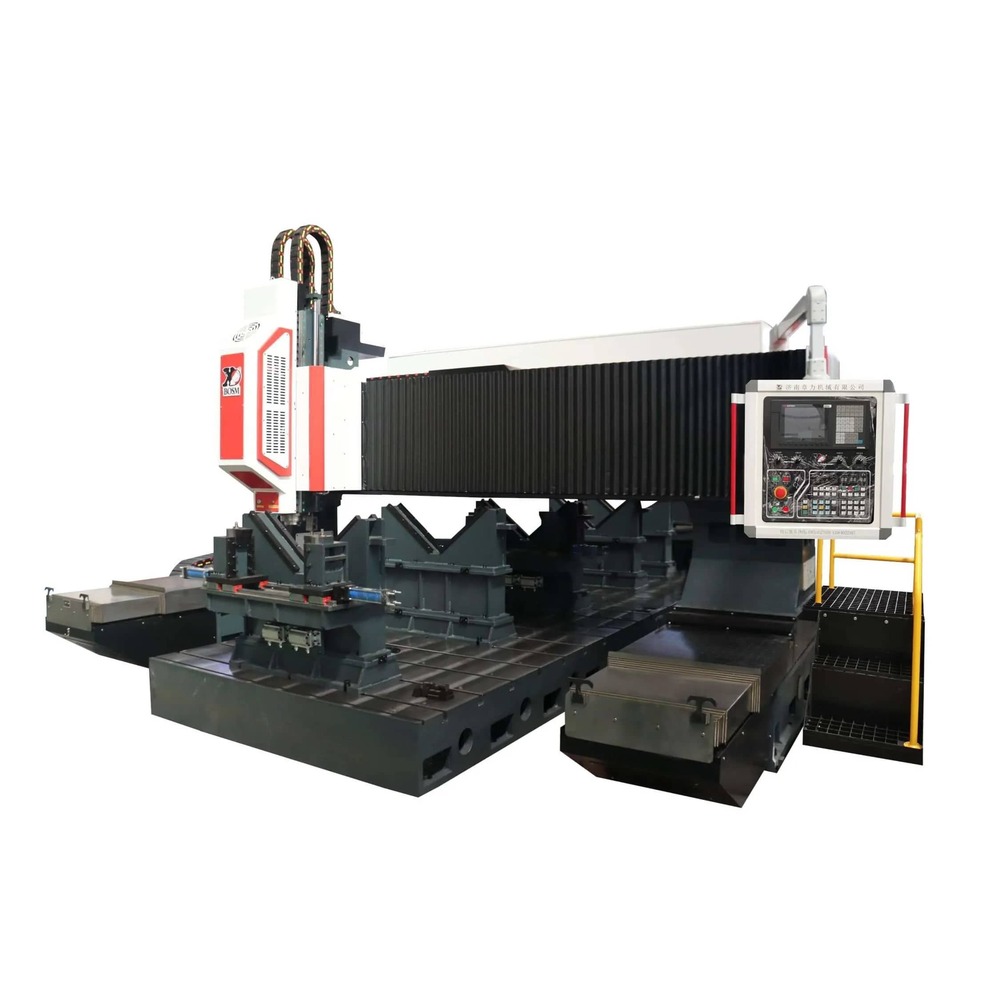

A gantry-type high-speed CNC drilling machine for boiler header pipes is an automated industrial system used to drill precise holes and mill welding grooves into heavy cylindrical pipes and drums for power plants and pressure vessels, replacing manual marking with computer-controlled speed and accuracy

Precision and Performance

Engineered for demanding applications, this CNC drilling machine ensures high-accuracy drilling for boiler header pipes made of mild steel, alloy steel, or stainless steel. Its heavy-duty structure, high torque spindle motor, and customizable power and size configurations allow for stable, repeatable operations on even the largest headers, making it indispensable for power generation and heavy industry fabrication.

Full Automation and Customization

With its fully computerized, PLC-controlled, and programmable operations, the machine delivers both efficiency and flexibility. Users benefit from an intuitive touchscreen HMI, automatic hydraulic clamping, and options for automatic tool changing and bar feeding. Installation, voltage, color, and table size can be tailored, ensuring the ideal setup for specific project requirements and maximized workflow integration.

Comprehensive Safety and Support

Operator safety is at the forefront, with features including emergency stop, safety interlocks, and a low-noise output (<80 dB). The machine is backed by professional on-site installation and training, ensuring seamless adoption into your production process. Its built-in coolant system and rigid build structure promote durability and maintain long-term accuracy.

FAQ's of CNC Drilling Machine For Boiler Header Pipe:

Q: How does the CNC drilling machine improve the processing of boiler header pipes?

A: The machine automates the drilling process for boiler header pipes, offering high speed, precision (repeatability 0.02 mm), and efficiency through programmable controls, hydraulic clamping, and an integrated coolant system. This results in consistent hole quality and reduced manual intervention, ideal for large-scale industrial applications.

Q: What materials can this CNC drilling machine handle?

A: The CNC drilling machine is compatible with mild steel, alloy steel, and stainless steel, making it suitable for various boiler header and pressure vessel applications where diverse material requirements are present.

Q: When should I consider customizing the machine's length or voltage options?

A: Customization is recommended when your project involves atypical header pipe lengths (up to 12,000 mm or more) or specific electrical infrastructure requirements (380V, 415V, or other voltages) to ensure seamless integration and optimal performance in your facility.

Q: Where is the ideal installation location for this CNC drilling machine?

A: It is best installed in environments like power plants, pressure vessel workshops, or boiler manufacturing units that require precision drilling of large-diameter pipes. Manufacturers provide on-site installation and training services to facilitate setup.

Q: What is the process for using the machine from setup to operation?

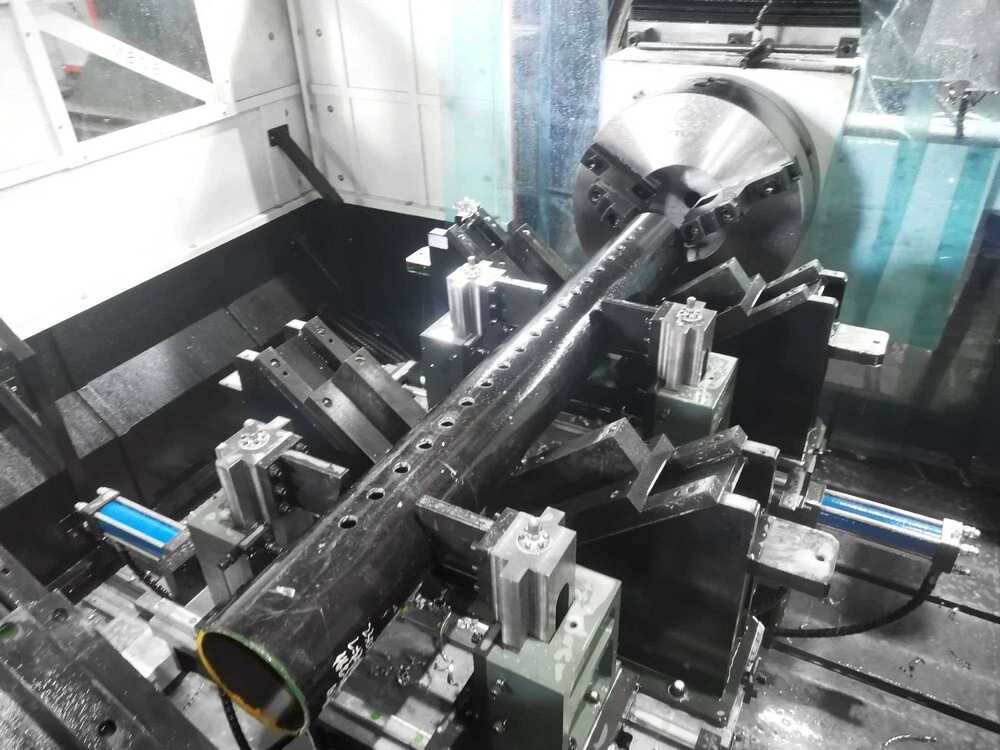

A: After on-site installation and training, operators use the touchscreen HMI to set parameters. Automatic hydraulic clamping secures the pipe, and drilling is carried out according to programmable instructions. The integrated coolant system manages heat, while optional tool changers and bar feeders further automate the process.

Q: How does the machine's design benefit productivity and operator safety?

A: Its fully automatic operation, user-friendly interface, low noise level (<80 dB), emergency stop function, and safety interlocks enhance productivity by reducing operational errors and ensuring a safe environment, minimizing workplace risks.

Q: What support and after-sales services are available for this machine?

A: Manufacturers typically offer on-site installation, initial operator training, and after-sales technical support to ensure a smooth transition and sustained operational reliability.
