CNC Lathe

• Automatic
• Other, Semi-Automatic, No

• Axial Choice
• Manual and Automatic (Feeds and Threads)

• Bar Feeder
• Other, Not Included, Other, Not Included

• Capacity
• Between Centers: 1500-3000 mm, Swing Over Bed: 400-600 mm

• Color
• Other, Industrial Green / Grey, Other, Machine Grey with Blue accent

• Computerized
• No, No

• Dimension (L*W*H)
• 3900 mm 1100 mm 1300 mm (approx)

• Feature
• Other, Hardened and ground bedways, high precision, Other, Precision ground bed ways, flame hardened Guideways, stable headstock

• General Use
• Metal Turning, Thread Cutting, Facing, Drilling

• Material
• Other, Cast Iron body; Alloy steel spindle, Other, Cast Iron (Bed & Headstock), Hardened Steel Components

• Motor
• Other, 7.5 HP (main motor), Other, 7.5 HP - 10 HP main drive motor

• PLC Control
• No, No

• Power Consumption
• 7.5 kW (approx)

• Power Source
• Electric, Electric

• Product Type

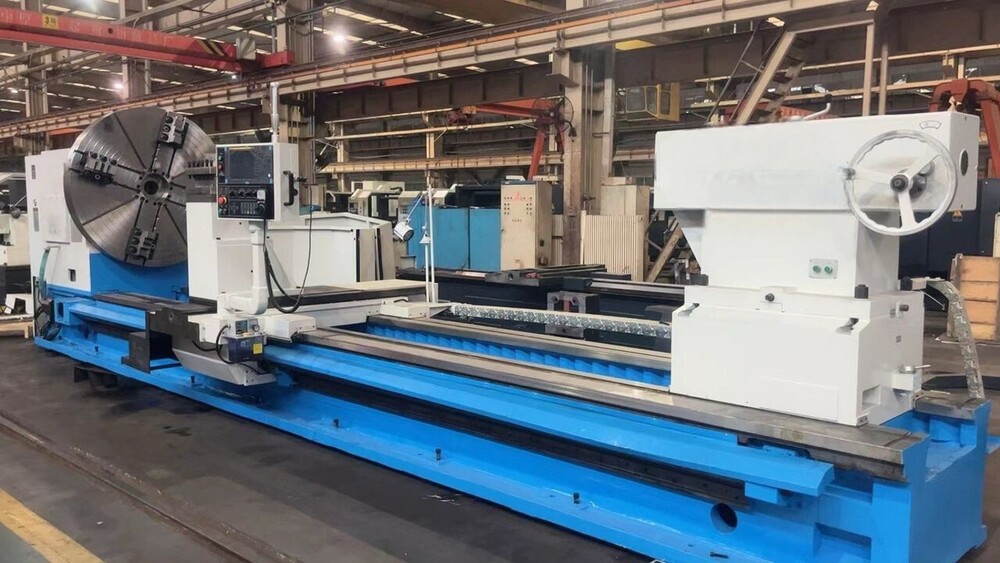

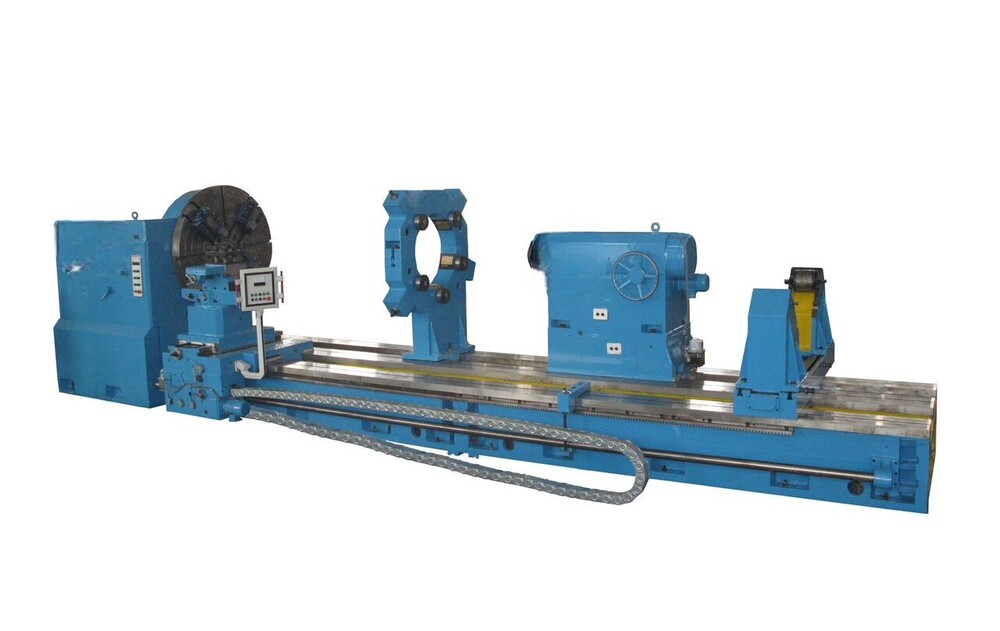

• Heavy Duty Conventional Lathe

• Rigidity
• Other, High Rigidity for heavy duty machining, Other, High rigidity with robust casting structure

• Spindle Speed
• 25 - 1600 rpm (Variable)

• Table Size
• Not Applicable (Lathe Bed: ~300mm-400mm Width)

• Type
• Other, Conventional Lathe Machine, Other, Manual Lathe Machine

• Voltage
• 415 V

• Weight (kg)
• 2500 - 3500 kg (approx)

• Automatic
• Yes, Other, Fully Automatic

• Axial Choice
• 2 Axis / 3 Axis

• Bar Feeder
• Other, Optional, Other, Available (Optional)

• Capacity
• Max Swing Over Bed 800 mm, Max Turning Length up to 2000 mm

• Color
• Other, Standard Industrial Grey with Blue Accents, Other, Blue & White

• Computerized
• Yes, Yes

• Dimension (L*W*H)
• 4800 mm x 1900 mm x 2200 mm

• Feature
• Other, Heavy duty, Precision, Stable Structure, High Performance, Other, Precision Machining, Heavy Loading, Fully Enclosed Guards

• General Use
• Metal Turning / Heavy Machining

• Material
• Other, Cast Iron Body / Alloy Steel Bed, Other, Cast Iron Bed, Hardened Guideways

• Motor
• Other, Main Spindle AC Servo Motor, Other, Main Spindle Motor, 15 HP

• PLC Control
• Other, Available, Other, Siemens/Fanuc (User Option)

• Power Consumption
• 15 kW

• Power Source
• Electric, Electric

• Product Type

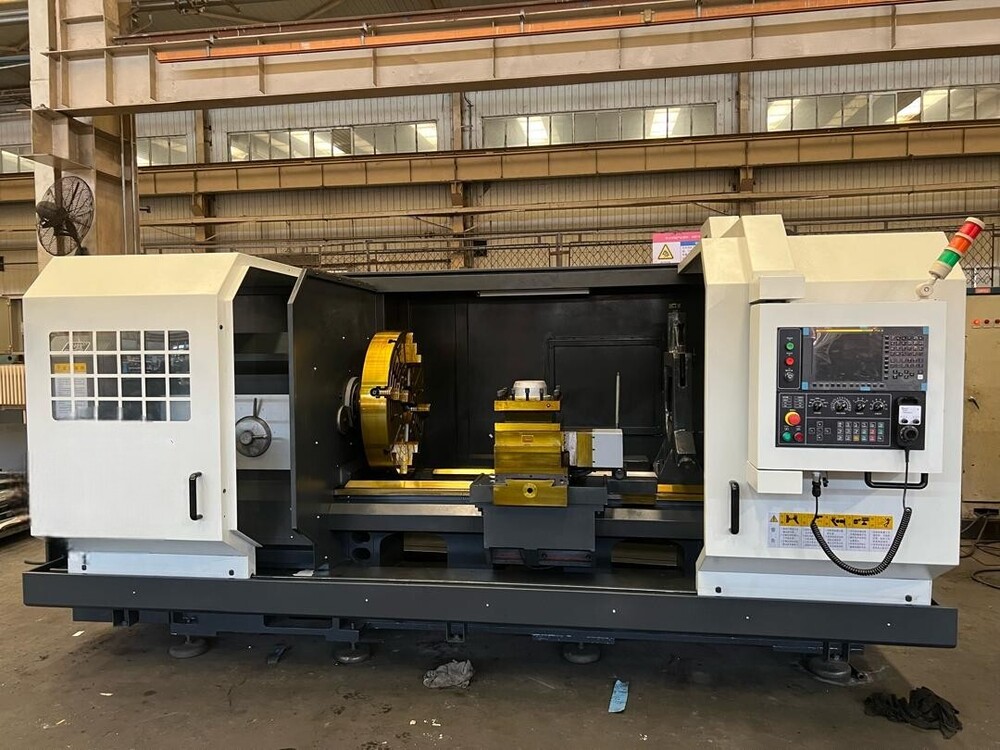

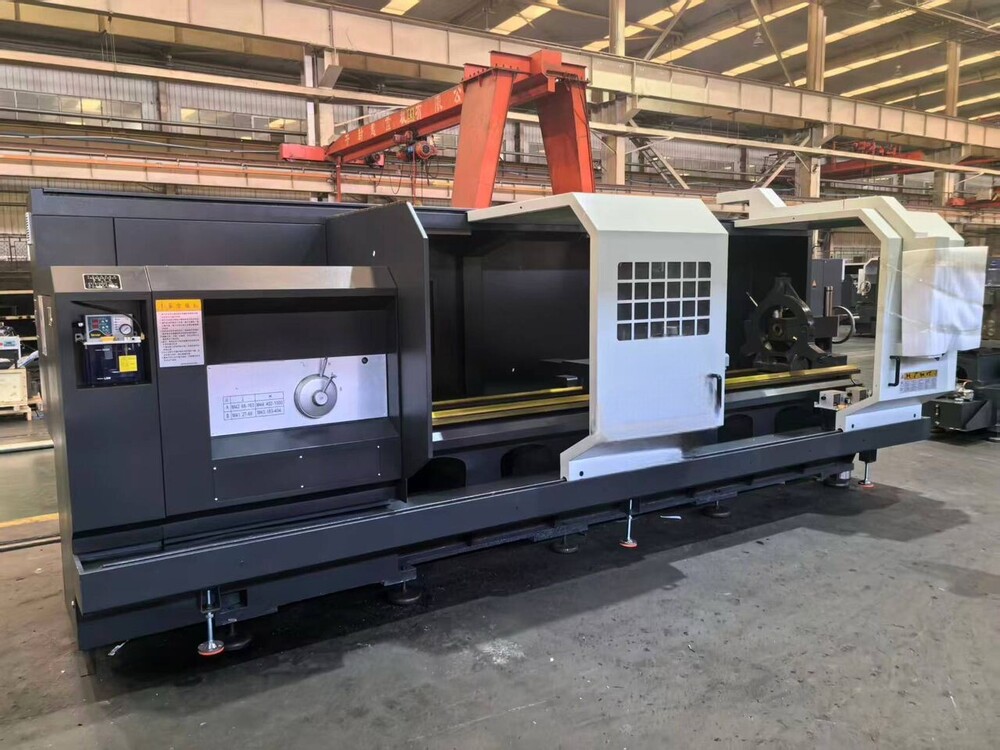

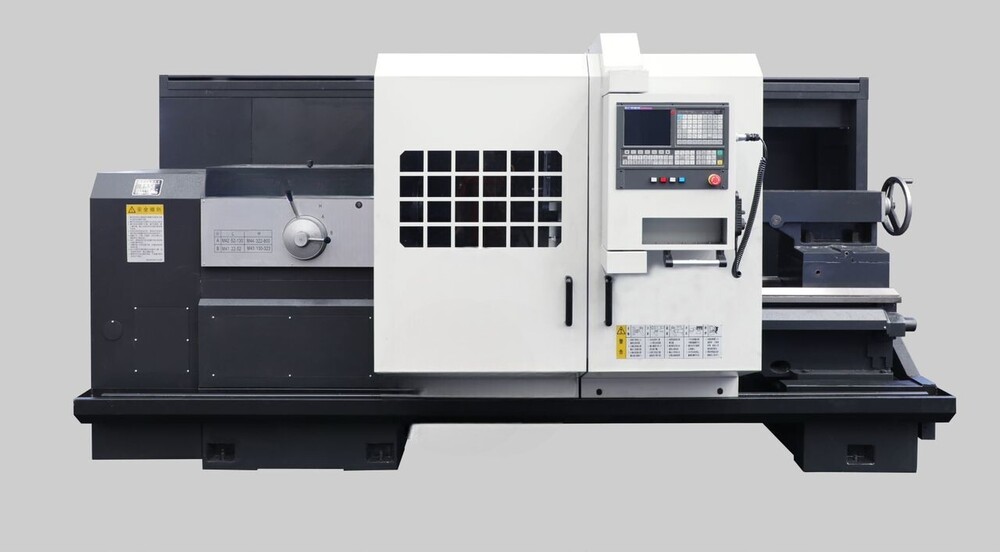

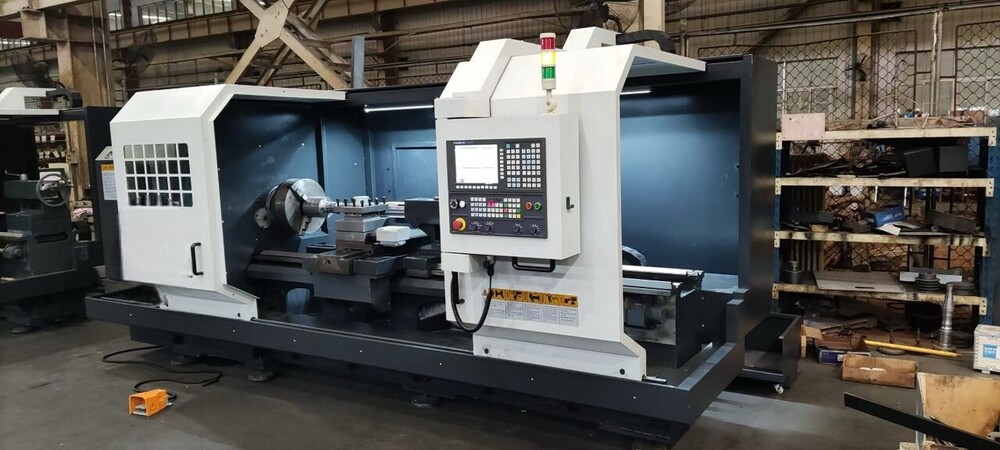

• Heavy Duty CNC Lathe

• Rigidity
• High, Other, High Rigidity Bed Structure

• Spindle Speed
• 50 - 1200 RPM

• Table Size
• Customizable (dependent on model)

• Type
• Other, CNC Lathe, Other, Horizontal CNC Lathe

• Voltage
• 380 V / 415 V

• Weight (kg)
• 4500 kg

• Automatic
• Other, Fully automatic, Yes

• Axial Choice
• 2-axis (X, Z)

• Bar Feeder
• Other, Optional, Other, Optional Automatic Bar Feeder

• Capacity
• Max turning diameter 400 mm, max turning length 1000 mm

• Color
• Other, White & Blue, Other, Grey / Blue (Standard) or Custom

• Computerized
• Yes, Yes

• Dimension (L*W*H)
• 3200 x 1550 x 1700 mm

• Feature
• Other, Precise machining, heavy-duty structure, high accuracy, Other, Precision Machining, Stable Performance, Heavy Duty

• General Use
• Turning, facing, threading, boring of various metals

• Material
• Other, Cast Iron (bed), Alloy steel (spindle), Other, Cast Iron Bed, Hardened Steel Components

• Motor
• Other, Main spindle motor, servo motors for axes, Other, Main Spindle Motor: 7.5 kW

• PLC Control
• Yes, Other, Available

• Power Consumption
• 7.5 kW

• Power Source
• Electric, Electric

• Product Type

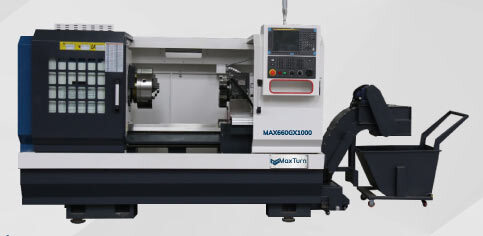

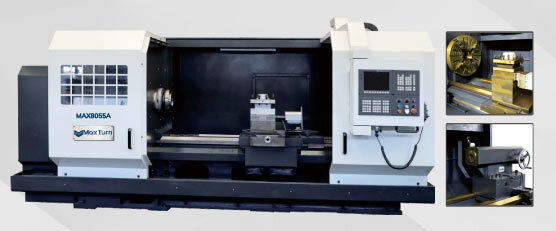

• Flat Bed CNC Lathe

• Rigidity
• Other, High torsional and bending rigidity, Other, High Rigidity Construction

• Spindle Speed
• Variable, up to 2000 rpm

• Table Size
• Customizable as per requirement

• Type
• Other, CNC Lathe Machine, Other, Horizontal CNC Lathe

• Voltage
• 380V / 415V

• Weight (kg)
• 3000 kg

• Automatic
• Other, Fully automatic cycle, semi-automatic/manual modes available, Yes

• Axial Choice
• 2-Axis (X, Z)

• Bar Feeder
• Other, Optional Automatic Bar Feeder, Other, Optional

• Capacity
• 5000 - 25000 kg workpiece capacity

• Color
• Other, Industrial Grey/Blue, Other, Industrial Grey/Blue

• Computerized
• Other, Yes, CNC system controlled, Yes

• Dimension (L*W*H)
• Up to 8000 mm x 2000 mm x 1800 mm (varies by model)

• Feature
• Other, Precision Roll Turning, Heavy Load Capacity, Tailstock, Steady Rest Support, Other, Automatic Lubrication, Tailstock, Chip Conveyor, Programmable

• General Use
• Roll turning, cylindrical machining, heavy component processing

• Material
• Other, High-strength cast iron bed, steel components, Other, Cast Iron (Bed), Hardened Steel (Gears/Slides)

• Motor
• Other, Powerful AC servo main motor, Other, Main Spindle Servo Motor / AC Motor

• PLC Control
• Other, Yes, available, Other, Available (Siemens/Fanuc/Mitsubishi)

• Power Consumption
• 12-40 kW (depending on model)

• Power Source
• Electric, Electric

• Product Type
• Heavy Duty Roll Turning CNC Lathe

• Rigidity
• Other, High structural rigidity for heavy-duty operations, Other, High Rigidity Bed and Carriage

• Spindle Speed
• 10 - 400 RPM (variable)

• Table Size
• Custom sizes available (up to 1000 mm swing over bed)

• Type
• Other, CNC Lathe Machine, Other, CNC Lathe

• Voltage
• 380V/415V, 3-Phase, 50/60 Hz

• Weight (kg)
• 12000 - 35000 kg (model dependent)
