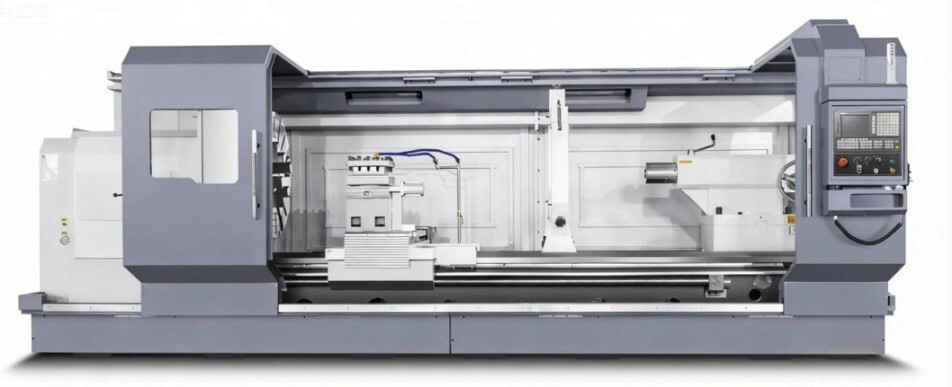

Heavy Duty CNC Lathe Machine MAX 1000E - 1600XE

Name: Heavy Duty CNC Lathe Machine MAX 1000E - 1600XE
Brand: MAXTURN MACHINERY
Price: 3000000 INR
Availability: InStock

Price 3000000 INR/ Number

Get a Price/Quote

MOQ : 1 Number

Heavy Duty CNC Lathe Machine MAX 1000E - 1600XE Specification

Product Type
Heavy Duty CNC Lathe Machine

General Use
Metal Turning, Industrial Machining, Heavy Component Manufacturing

Material
Cast iron base, steel major parts

Type
Horizontal CNC Lathe

Capacity
Max swing over bed: 1000-1600 mm (model dependent)

Weight (kg)
Approx. 12000-18000 kg (depending on model)

Computerized
Yes

Automatic
Yes

PLC Control
Yes

Bar Feeder
Optional

Power Source
Electric

Power Consumption
Depends on model and configuration

Rigidity
High

Voltage
380V / 415V (as per customer requirement)

Motor
High performance spindle motor

Table Size
Not applicable (CNC Lathe)

Spindle Speed
Depends on model, typically up to 800 RPM

Axial Choice
X / Z axis standard, other axes optional

Dimension (L*W*H)
Varies, approx. 4800 x 2100 x 2100 mm (varies with model)

Feature
High precision, heavy load capacity, robust construction, user friendly interface

Color
Grey / Custom

CNC System
Siemens / Fanuc / LNC (as per customer order)

Tailstock Quill Diameter
120 mm

Rapid Traverse Rate
7~10 m/min (X/Z axis)

Maximum Turning Length
Customizable up to 5 meters

Tool Post
Automatic 4 or 6 station turret

Repeatability
0.005 mm

Coolant System
Standard equipped

Bed Width
600 mm

Lubrication System
Automatic

Spindle Bore
105 mm / 130 mm / customized

Application
Oil/Gas, Railway, Aerospace, Energy, Heavy Engineering

Tailstock Quill Travel
250 mm

Chuck Size
Up to 800 mm

Distance Between Centers
1500 mm to 6000 mm (as required)

About Heavy Duty CNC Lathe Machine MAX 1000E - 1600XE

Features: Machine Structure cast in High Standard cast iron (HT300) Induction Hardened Bed Guideways 48-52 HRC Turcite coating in carriage slide ways Heavy duty NN Series Bearing In Spindle Gears Induction Harden and Ground External Pump for Headstock lubrication Double Nut Ball screw in X and Z axis High Quality Electric Switchgears

Robust Design for Heavy Industrial Applications

Built with a wide bed (600 mm) and a strong cast iron base, the MAX 1000E - 1600XE CNC lathe delivers unmatched stability and support for heavy-duty turning operations. Its high load capacity and precision components make it suitable for demanding applications in oil/gas, railways, aerospace, energy, and other heavy engineering industries where reliability is crucial.

Flexible Specifications to Meet Diverse Needs

This CNC lathe offers customizable features, including chuck size (up to 800 mm), spindle bore, and the distance between centers (up to 6000 mm). With support for various CNC systems (Siemens, Fanuc, LNC) and turret choices, clients can tailor the equipment for unique production requirements, ensuring efficiency and optimal workflow.

Advanced Control and Automation Technologies

Equipped with computer-controlled systems, automatic lubrication, high-speed traverse rates, and user-friendly interfaces, the MAX 1000E - 1600XE increases productivity while reducing operator effort. Automatic 4/6 station turrets and innovative features deliver consistently high precision and repeatability (0.005 mm) over long production runs.

FAQ's of Heavy Duty CNC Lathe Machine MAX 1000E - 1600XE:

Q: How does the MAX 1000E - 1600XE CNC Lathe ensure high precision in heavy load applications?

A: The machine features a robust cast iron base, precise guideways, and high-quality spindle bearings, allowing it to maintain repeatability of 0.005 mm even under heavy loads. Advanced CNC control systems like Siemens, Fanuc, or LNC further enhance accuracy by enabling precise motion control and real-time corrections throughout each machining operation.

Q: What are the main applications for the MAX 1000E - 1600XE CNC Lathe?

A: This lathe is designed for heavy-duty industrial use, with primary applications in oil and gas, railway manufacturing, aerospace components, energy sector, and general heavy engineering. The machine excels at turning large, complex metal parts where strength, stability, and accuracy are essential.

Q: When should I choose a customizable spindle bore or distance between centers?

A: A customizable spindle bore and adjustable distance between centers are valuable when your workpieces vary in size or when you handle specialty tasks requiring different bar or shaft diameters. Selecting the appropriate dimensions ensures optimal support and efficiency for both small and exceptionally large jobs.

Q: What is the process for configuring the CNC system and tool turret on this lathe?

A: Customers can specify their preferred CNC control system-Siemens, Fanuc, or LNC-at the time of order. Likewise, the tool post can be equipped with either an automatic 4-station or 6-station turret, allowing for flexible and rapid tool changes based on your production needs.

Q: Where is the MAX 1000E - 1600XE manufactured and supplied from?

A: This CNC lathe is manufactured, supplied, and traded by reputable companies in India. These manufacturers specialize in industrial-grade machinery and offer international shipping and service support as required.

Q: How does the automatic lubrication and coolant system benefit users during operation?

A: The automatic lubrication system ensures critical moving parts are continuously and precisely lubricated, reducing wear and maintenance needs. The standard-equipped coolant system effectively manages heat during turning, which extends tool life and improves the surface finish of machined components.

Q: What advantages does the high rapid traverse rate offer during machining?

A: With X/Z axis rapid traverse rates between 7 and 10 m/min, the lathe minimizes non-cutting time as tools reposition between cycles. This boosts overall productivity, especially during long or repetitive production runs, keeping your workflow efficient and cost-effective.
