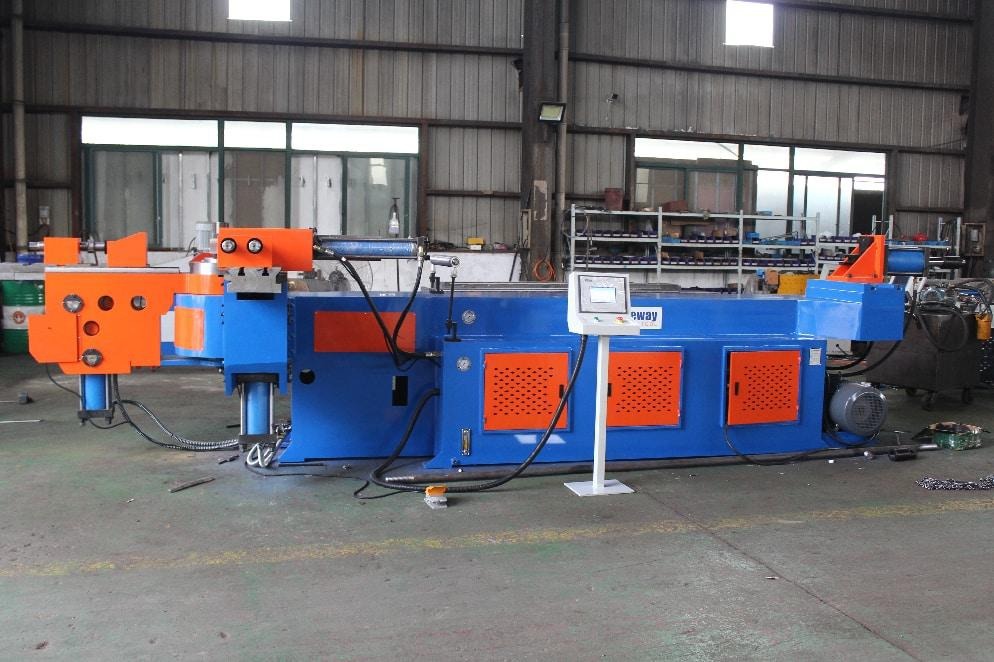

CNC Pipe Bending Machine

Name: Pipe Bending Machine
Brand: MAXTURN MACHINERY
Price: 5000000 INR
Availability: InStock

Price 5000000 INR/ Number

Get a Price/Quote

MOQ : 1 Number

CNC Pipe Bending Machine Specification

Product Type
Pipe Bending Machine

General Use
Pipe, tube, and profile bending for industrial applications

Material
Mild Steel, Stainless Steel, Copper, Aluminum Compatible

Capacity
Pipe diameter up to 76mm (custom options)

Weight (kg)
Approx. 950 kg

Computerized
Yes

Automatic
Yes

PLC Control
Yes

Power Source
Electric

Power Consumption
5-7 kW (typical)

Voltage
380V, 50Hz (customizable per request)

Table Size
Standard integrated working table

Spindle Speed
Variable (controlled via PLC setting)

Axial Choice
Single/Multiple axis (programmable options)

Dimension (L*W*H)
Approx. 3.8m x 1.0m x 1.5m

Color
Blue & Orange

Safety Features
Emergency stop, overload protection

Max. Bending Speed
50/sec (depending on pipe size and material)

Bend Radius
Min. 1.5 x pipe diameter

Tooling
Interchangeable bending dies and mandrels

Cooling System
Air-cooled/Hydraulic oil cooling system

Applicable Industries
Automotive, Furniture, Shipbuilding, Construction, HVAC

Bending Angle Range
0 to 190 (programmable)

Lubrication System
Centralized automatic lubrication

Repeatability
0.1 per bend

Hydraulic Pressure
12-14 MPa

Operation Mode
Manual, Semi-Automatic, and Fully Automatic

Control System
Integrated PLC and electronic controller

Display Interface
Touchscreen HMI

Noise Level
Below 75 dB(A)

About CNC Pipe Bending Machine

Experience the unrivaled precision and soaring efficiency of our Pipe Bending Machine-a must-have for industries seeking superior results. In demand across automotive, construction, and shipbuilding sectors, this classic bending solution boasts a programmable 0 to 190 bending angle, repeatability of 0.1 per bend, and high structural rigidity. Enjoy substantial savings on production time with variable spindle speed and centralized automatic lubrication. The touchscreen HMI, integrated PLC, and interchangeable tooling ensure seamless operation. Its robust blue-and-orange build guarantees reliability while maintaining below 75 dB(A) noise levels.

Versatile Applications and Direction of Use

This Pipe Bending Machine is engineered for seamless pipe, tube, and profile bending. Simply select the required bend angle and mode-manual, semi-automatic, or fully automatic-via the intuitive touchscreen HMI. Suitable for application in automotive plants, furniture manufacturing, shipyards, and HVAC construction, it supports both small workshops and large-scale industrial plants. Its high repeatability ensures consistent output, meeting the robust demands of plant-level fabrication and assembly operations.

Payment Terms, Supply Ability, and FOB Port Details

Our pipe bending solution caters to the domestic market with efficient order processing and clear payment terms. Supply ability matches soaring industrial demands, with machines carefully tested and handed over for seamless integration. FOB options are available for leading Indian ports, ensuring fast and reliable dispatch. Order your machine for prompt handover, backed by our manufacturer, supplier, and trader network-ensuring quality and promptness at every stage of your procurement journey.

FAQ's of Pipe Bending Machine:

Q: How does the Pipe Bending Machine ensure precise and repeatable bends?

A: The machine offers programmable bending angles (0 to 190) and delivers repeatability up to 0.1 per bend. Its integrated PLC, electronic controller, and high structural rigidity help maintain precision, while interchangeable tooling and automated lubrication further enhance consistency.

Q: What materials can be used with this Pipe Bending Machine?

A: This versatile bender is compatible with mild steel, stainless steel, copper, and aluminum, accommodating pipe diameters up to 76mm. Custom options are available for specific applications.

Q: Where can this Pipe Bending Machine be applied?

A: The machine is ideal for automotive, furniture, shipbuilding, construction, and HVAC industries, offering solutions across both plant-level and workshop settings for efficient and accurate pipe fabrication.

Q: What makes the operation of this machine user-friendly?

A: Operators benefit from a touchscreen HMI display, programmable settings, and options for manual, semi-automatic, or fully automatic operation. Safety features like emergency stop and overload protection also ensure secure use.

Q: How does the order processing and handover work when purchasing this machine?

A: Once your order is placed, our team initiates swift processing, subject to domestic market requirements. Machines are thoroughly tested and prepared for prompt handover, with shipping arranged via leading Indian FOB ports for convenience.
