Special Design Drilling&Milling Machine

Name: Special Design Drilling&Milling Machine
Brand: MAXTURN MACHINERY
Price: 15000000 INR
Availability: InStock

Price 15000000 INR/ Unit

Get a Price/Quote

MOQ : 1 Unit

Special Design Drilling&Milling Machine Specification

Product Type
Special Design Drilling & Milling Machine

General Use
Precision drilling and milling for industrial machining applications

Material
Cast Iron Base, Steel Framework

Type
CNC/Manual Version Available

Capacity
Up to 3000 kg workpiece loading

Weight (kg)
Approx. 6800 kg

Computerized
Yes (for CNC version)

Automatic
Semi-Automatic & Fully Automatic Variants

PLC Control
Included (Siemens/Fanuc/Mitsubishi options)

Bar Feeder
Available upon request

Power Source
Electric

Power Consumption
7.5 kW (typical, varies by configuration)

Rigidity
High

Voltage
380V / 415V, 3 Phase

Motor
AC Induction Motor

Table Size
2000 mm x 800 mm (customizable)

Spindle Speed
50 - 6000 rpm (variable based on model)

Axial Choice
X / Y / Z (3 Axis Standard, 4th/5th Optional)

Dimension (L*W*H)
3500 mm x 3100 mm x 2900 mm

Feature
Heavy-duty frame, precision guideways, automatic lubrication, chip conveyor, high-speed spindle, user-friendly interface

Color
Black, Red, and White

Machine Bed
Heavily ribbed for vibration absorption

Maximum Travel (X/Y/Z)
2000 mm / 800 mm / 800 mm

Maximum Drilling Diameter
50 mm

Safety Features
Emergency stop, door interlock, overload protection

Lubrication System
Centralized and automatic

Lighting
LED Work Area Illumination

Installation
Base-mounted, pre-assembled for easy setup

Power Supply Frequency
50 Hz / 60 Hz

Software Compatibility
Supports G-code/ISO/NC programming

Tool Magazine
24 ATC (Automatic Tool Changer) as optional

Spindle Motor Power
7.5 kW/10 HP

Coolant System
High-capacity coolant pump with filtration

Positioning Accuracy
0.005 mm

Control Panel
Touchscreen HMI with safety interlocks

Guideways
Hardened and precision ground

Maximum Milling Width
600 mm

Repeatability
0.003 mm

Noise Level
<75 dB during operation

About Special Design Drilling&Milling Machine

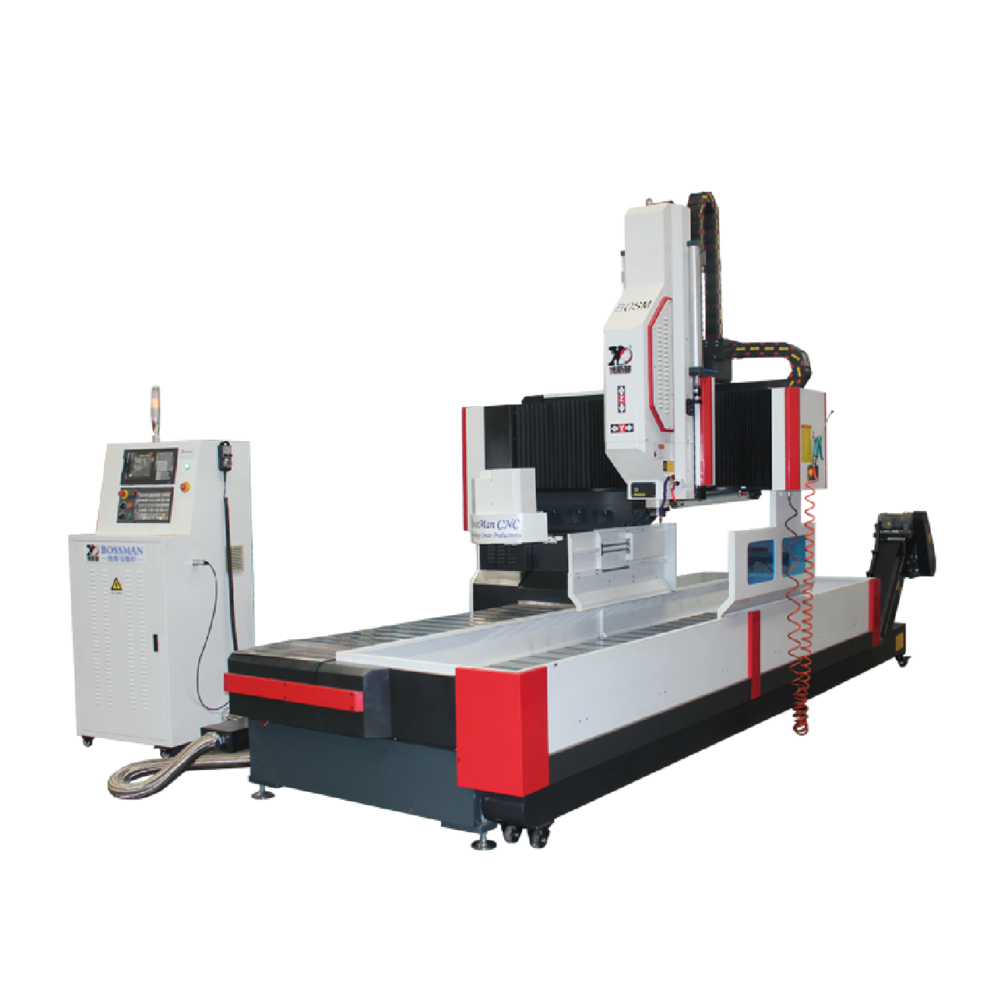

Special Design Drilling & Milling Machine is an industrial gantry-style CNC machine engineered for heavy-duty, high-precision processing of irregular, large-scale workpieces. It consolidates drilling, milling, and tapping into a single platform, optimizing workflow and production efficiency

Precision and Power Combined

Engineered for demanding machining tasks, this machine delivers exceptional positioning accuracy (0.005 mm) and repeatability (0.003 mm). The AC induction motor and variable spindle speeds (50-6000 rpm) allow for seamless adaptation to various materials, ensuring high-quality results on every workpiece.

Efficient Automation and Safety Features

Choose between manual, semi-automatic, or CNC-controlled machining. Experience maximum productivity with optional 24-tool ATC, robust PLC platforms, centralized lubrication, and advanced safety mechanisms including emergency stop and door interlocks. The operator-friendly touchscreen HMI adds to seamless workflow and safety.

Heavy-Duty Construction and Versatile Use

A heavily ribbed cast iron bed and precision-ground guideways support large workpieces (up to 3000 kg). Suitable for both precision drilling and milling, the structure absorbs vibrations for superior surface finish. Modular design means the machine is well-suited for industrial manufacturing environments across India.

FAQ's of Special Design Drilling&Milling Machine:

Q: How does the 24-tool automatic tool changer (ATC) improve machining efficiency?

A: The optional 24 ATC enables rapid and automated switching between tools, minimizing downtime and manual intervention. This is particularly beneficial for complex or multi-step operations where various tools are needed for drilling and milling, ensuring maximum productivity.

Q: What materials can be processed with this special design drilling and milling machine?

A: Thanks to its powerful spindle motor (7.5 kW) and robust frame, the machine can efficiently process a wide range of materials-from aluminum to steel and cast iron. Its high rigidity and variable spindle speed make it suitable for most industrial machining applications.

Q: When should regular maintenance, like lubrication and coolant filtration, be performed?

A: The machine is equipped with centralized and automatic lubrication, as well as a high-capacity coolant pump with filtration. While these systems reduce manual maintenance needs, it is optimal to follow the manufacturer's recommended schedule for routine inspections to ensure long-term precision.

Q: Where is this machine best suited for installation?

A: This versatile machine is ideal for industrial workshops and factories engaged in precision metalworking, especially where large or heavy workpieces are involved. Its base-mounted, pre-assembled configuration allows for straightforward installation in most factory floors within India.

Q: How do the safety interlocks and emergency stop features protect operators?

A: Safety features such as emergency stop buttons, door interlocks, and overload protection are integrated, immediately shutting down operations if unsafe conditions are detected. This reduces risk, ensuring operator safety during all machining processes.

Q: What are the benefits of the touchscreen HMI and PLC control options?

A: The touchscreen HMI allows for user-friendly operation with intuitive controls and clear system status monitoring. Integrated PLCs (Siemens, Fanuc, Mitsubishi) support complex automation, efficient workflow, and compatibility with widely-used manufacturing software.

Q: What is the typical process for setting up and using this drilling and milling machine?

A: Installation is straightforward thanks to the pre-assembled, base-mounted design. After power connection (380/415V, 3-phase), configure the machine parameters via the HMI, load the workpiece, and select the appropriate program (compatible with G-code/ISO/NC). The machine then performs precise and automated operations as required.
