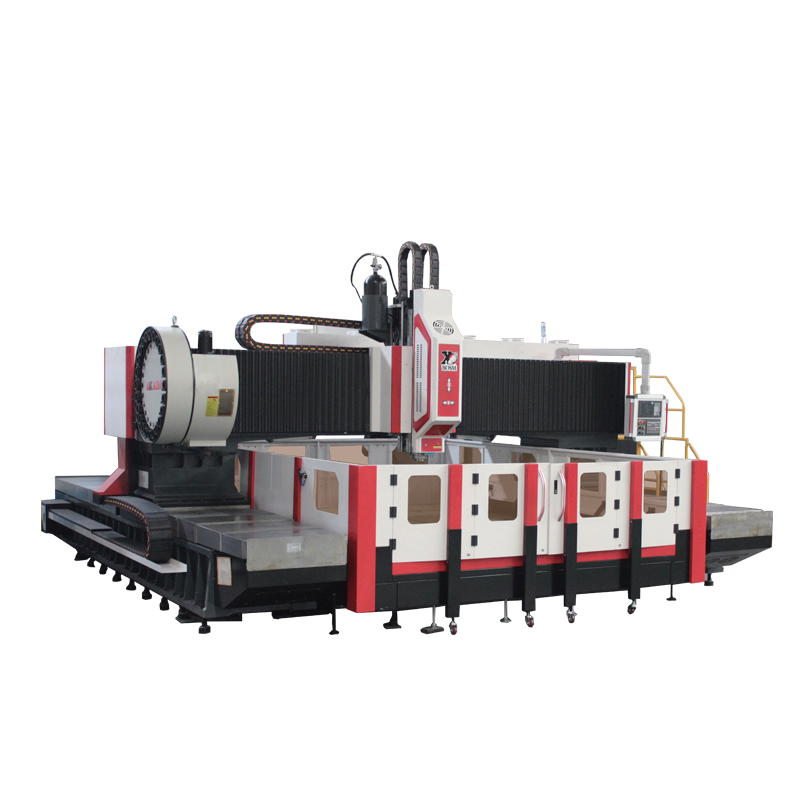

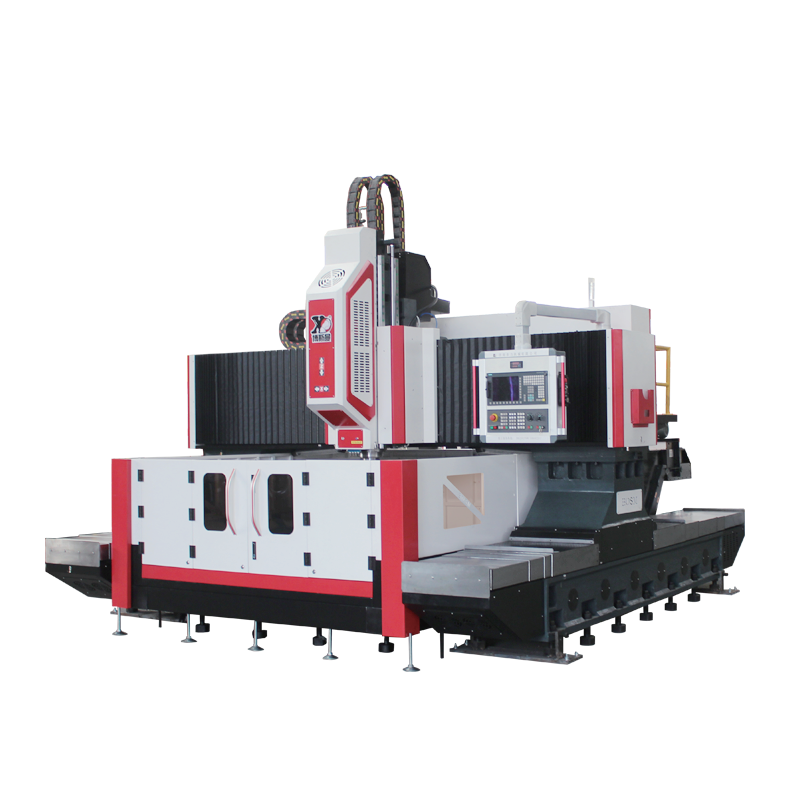

Heavy Duty Drilling&Milling Machine

Name: Heavy Duty Drilling&Milling Machine
Brand: MAXTURN MACHINERY
Price: 10000000 INR
Availability: InStock

Price 10000000 INR/ Number

Get a Price/Quote

MOQ : 1 Number

Heavy Duty Drilling&Milling Machine Specification

Product Type
Heavy Duty Drilling & Milling Machine

General Use
Industrial metalworking and fabrication

Material
Cast Iron, Steel Components

Type
Gantry/Vertical Drilling & Milling Machine

Capacity
Heavy duty metal plates/blocks

Weight (kg)
Approx. 12000-30000 kg

Computerized
Yes (CNC/PLC supported)

Automatic
Yes

PLC Control
Available/Optional

Bar Feeder
No

Power Source
Electric

Power Consumption
High (Specific value depends on model)

Rigidity
High rigid cast iron construction

Voltage
380V/415V, 50Hz or as requested

Motor
Powerful Three Phase Motor

Table Size
Customizable/Large Table (Typical: 1000mm x 2500mm or above)

Spindle Speed
Variable, typically 50-3000 rpm

Axial Choice
3-Axis/4-Axis (Depending on model)

Dimension (L*W*H)
Approx. 6000 x 3500 x 3200 mm (sample)

Feature
High precision, heavy-duty structure, automatic operation

Color
Standard industrial (Grey, Red, Black)

Control System
Siemens/Fanuc/Mitsubishi (selectable)

Feed Rate
Max 5000 mm/min (Rapid Traverse)

Machine Accuracy
0.02 mm or better

Tool Changer
Automatic (ATC available; e.g. 16-32 stations)

Number of Spindles
1 or 2 (twin-head models available)

Spindle Taper
ISO 50 / BT50

Table Load Capacity
Up to 8000 kg or more

Accessories
Standard toolkit, manuals, maintenance kit

X/Y/Z Travel
Customizable; e.g. 2000mm/1500mm/1000mm

Coolant System
Built-in with high-pressure pump

Guarding
Full safety enclosure with window panels

Noise Level
< 85 dB

Foundation Requirement
Heavy-duty industrial concrete foundation

Lubrication System
Automatic centralized lubrication

Operating Temperature
5C - 45C

About Heavy Duty Drilling&Milling Machine

Heavy Duty Drilling and Milling Machines are industrial CNC systems designed for processing large heavy workpieces like tube sheets flanges and crane beams They feature hightorque spindles up to 22 kW560 Nm rigid boxframe designs and dualspindle capabilities for drilling milling boring and tapping

High Precision Meets Heavy-Duty Performance

Designed for rigorous industrial demands, this machine integrates a high-rigidity cast iron structure with advanced CNC/PLC controls, providing both accuracy and durability. The variable spindle speed (50-3000 rpm) and spacious, customizable table accommodate diverse workpieces, ensuring adaptability and consistent quality in heavy-duty operations.

Customizable and User-Centric Design

Offering customizable travel, table size, and control systems, this machine is tailored to specific manufacturing needs. Features such as automatic tool changers (ATC), centralized lubrication, high-pressure coolant, and a comprehensive safety enclosure make operation efficient and safe, reinforcing productivity with ease of use.

FAQ's of Heavy Duty Drilling&Milling Machine:

Q: How does the automatic tool changer (ATC) enhance productivity on this drilling and milling machine?

A: The ATC system enables rapid and automatic switching between tools, minimizing manual intervention and operational downtime. With options for 16-32 stations, it supports efficient machining of complex parts and increases throughput in high-volume production environments.

Q: What types of materials can be processed with this heavy-duty machine?

A: The machine is designed for machining heavy metal plates and blocks, utilizing components made from cast iron and steel. Its rigidity, spindle power, and high table load capacity allow it to handle various metals for industrial fabrication applications.

Q: When should I opt for the twin-head model over the single-head variant?

A: Twin-head (dual spindle) models are recommended when simultaneous processing of two workpieces or high-production workloads is required, effectively doubling output and reducing cycle times for batch manufacturing.

Q: Where is this machine most effectively utilized?

A: This machine is ideal for installation in heavy fabrication workshops, metal component manufacturing plants, and production lines requiring high accuracy and load-handling capabilities. Its industrial-grade foundation and safety features suit demanding, large-scale operations.

Q: What processes are supported by the machine, and what are the benefits of CNC/PLC control integration?

A: It supports drilling, milling, and tapping of metal components. Integrated CNC/PLC controls automate operations, ensure repeatable precision (to 0.02 mm), enable flexible programming of complex jobs, and streamline workflow.

Q: How does the built-in coolant and lubrication system improve machine usage and longevity?

A: The high-pressure built-in coolant system maintains optimal cutting temperatures, while the automatic centralized lubrication reduces friction and wear. Together, these features extend tool life and minimize maintenance requirements, ensuring consistent performance and reliability.
