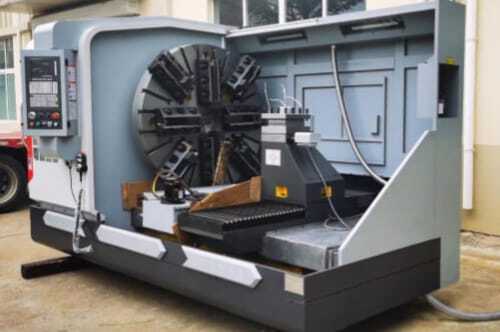

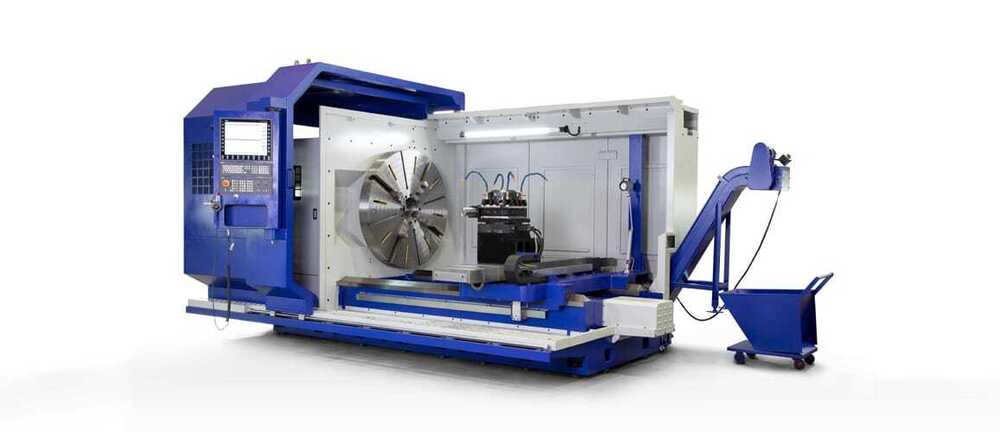

Facing Machine

Name: Facing Machine
Brand: MAXTURN MACHINERY
Price: 650000 INR
Availability: InStock

Price 650000 INR/ Number

Get a Price/Quote

MOQ : 1 Number

Facing Machine Specification

Product Type
Facing Machine

General Use
Face machining and finishing of large diameter components

Material
Cast Iron & Mild Steel Structure

Type
CNC Facing Machine

Capacity
Suitable for large diameter jobs up to 1600 mm

Weight (kg)
Approx. 5200 kg

Computerized
Yes

Automatic
Yes

PLC Control
Available

Bar Feeder
No

Power Source
Electric

Power Consumption
7.5 kW

Rigidity
High

Voltage
380 V / 415 V

Motor
Heavy-duty induction motor

Table Size
1000 mm x 800 mm

Spindle Speed
Variable, up to 600 RPM

Axial Choice
X and Z Axis

Dimension (L*W*H)
3200 mm x 1900 mm x 2200 mm

Feature
High precision, Rigid body, Heavy duty, Vertical slide

Color
Grey and Black

Usage Environment
Industrial/Workshop

Feed Rate
0.03 - 1.5 mm/rev (Infinitely variable)

Installation
Floor mounted with vibration absorbers

Coolant System
Integrated with pump

Chuck Size
1250 mm

Lubrication
Automatic centralized lubrication

Control Panel
Digital Touch Screen

Guideway Type
Hardened and ground

Safety Features
Emergency stop, Overload protection

Noise Level
< 80 dB

Repeatability
0.01 mm

Work Holding
Manual/Auto Clamping

About Facing Machine

CNC lathe facing of big diameters, you need specialized heavy-duty horizontal or vertical CNC facing lathes designed for large parts like flanges, turbine components, or molds, featuring huge chucks (1m+), high rigidity, massive swing capacity (1m to 2m+), and often powerful direct-drive spindles for heavy loads at lower speeds, with options for live tooling and multiple spindles for complex tasks. Key terms to search for are "Big Bore CNC Lathe," "Heavy Duty Facing Lathe," and "Large Diameter CNC Turning Center"

Precision Engineering for Large Components

Engineered for accuracy and durability, this facing machine is ideal for face machining and finishing of large-diameter workpieces up to 1600 mm. Its rigid cast iron and mild steel structure, paired with hardened and ground guideways, ensures high-precision operations and exceptional repeatability in intensive industrial environments.

User-Friendly Digital Control

Operating this machine is straightforward with its digital touch screen interface and PLC controls. The user can effortlessly modify spindle speed (up to 600 RPM), feed rates, and clamping modes (manual or automatic). Installation is safe and stable, thanks to vibration absorbers and a robust floor-mounting setup.

Advanced Safety and Efficiency

The machine integrates advanced safety systems like emergency stop and overload protection. An automatic centralized lubrication system supports smooth operation, while the integrated coolant system with pump enhances tool life and workpiece finish. Its efficiency is matched with low power consumption for industrial settings.

FAQ's of Facing Machine:

Q: How does the digital touch screen control panel enhance machine operation?

A: The digital touch screen control panel simplifies operation by allowing easy adjustment of spindle speeds, feed rates, and other parameters through an intuitive interface. This leads to faster setups, improved productivity, and reduced chances of operational errors.

Q: What is the recommended environment for using this facing machine?

A: This CNC Facing Machine is designed specifically for industrial and workshop settings where heavy-duty and high-precision machining of large diameter components is necessary. Its floor-mounted construction with vibration absorbers ensures stable and reliable use in such environments.

Q: When should automatic or manual clamping be used for work holding?

A: The choice between automatic and manual clamping depends on the workload and convenience. Automatic clamping is beneficial for faster, repetitive processes, while manual clamping may be preferred for custom or non-standard jobs requiring more hands-on adjustment.

Q: Where can this machine be installed, and what are the installation requirements?

A: It should be installed on a level workshop floor, anchored with the provided vibration absorbers. Proper electrical supply (380V or 415V, 7.5kW) is necessary, along with sufficient space for its dimensions (3200mm x 1900mm x 2200mm) and access for maintenance.

Q: What process does the integrated coolant system support, and what are its benefits?

A: The integrated coolant system with pump helps in dissipating heat generated during face machining, thereby increasing tool life, maintaining workpiece accuracy, and producing superior surface finishes.

Q: How does the machine ensure safety during operation?

A: Safety is prioritized with features like an emergency stop button and overload protection. These protect both the operator and the machine from unexpected hazards or electrical faults.

Q: What are the main benefits of using this high precision facing machine?

A: Users benefit from its high rigidity, precision (0.01 mm repeatability), versatility for large jobs, automated lubrication, and advanced safety-all contributing to higher productivity, minimal downtime, and top-quality machining results.
