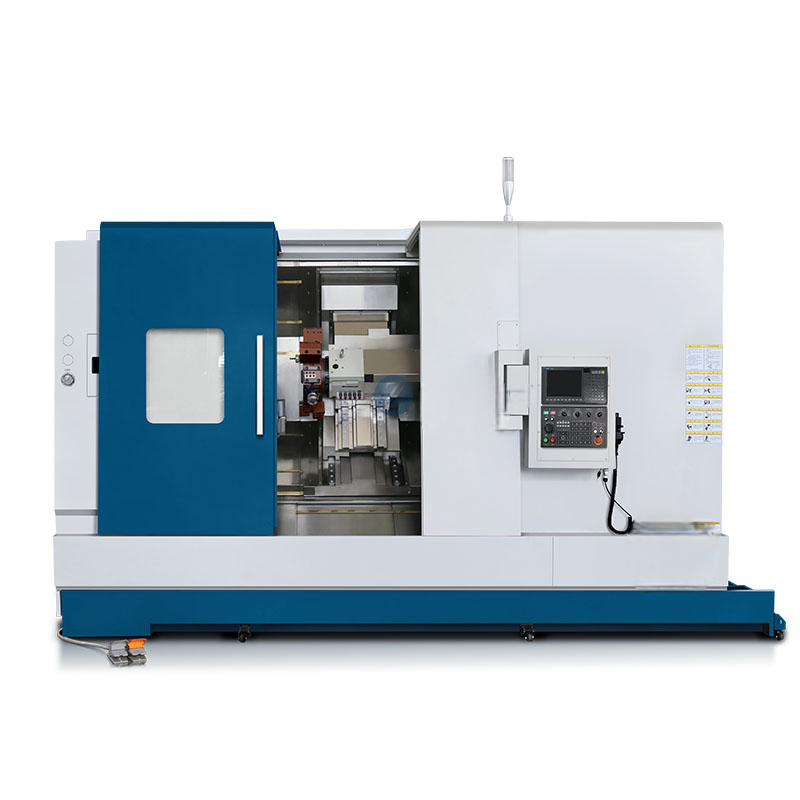

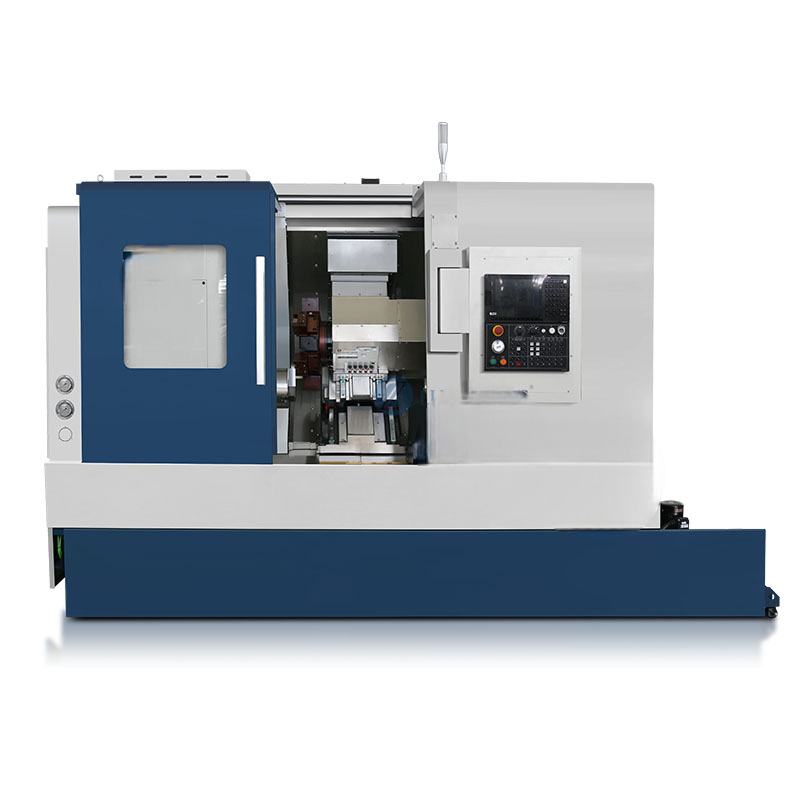

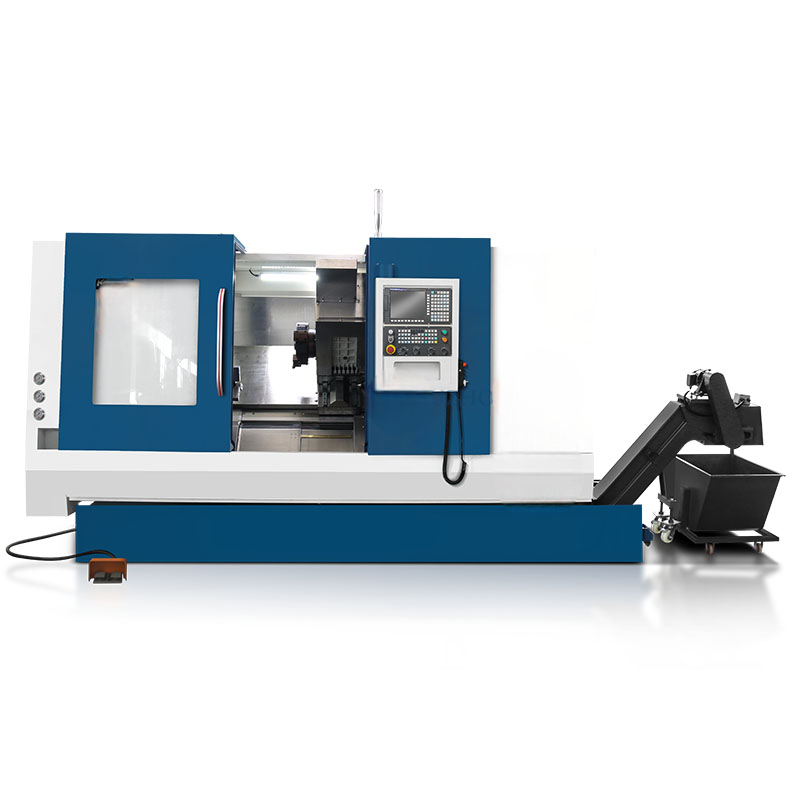

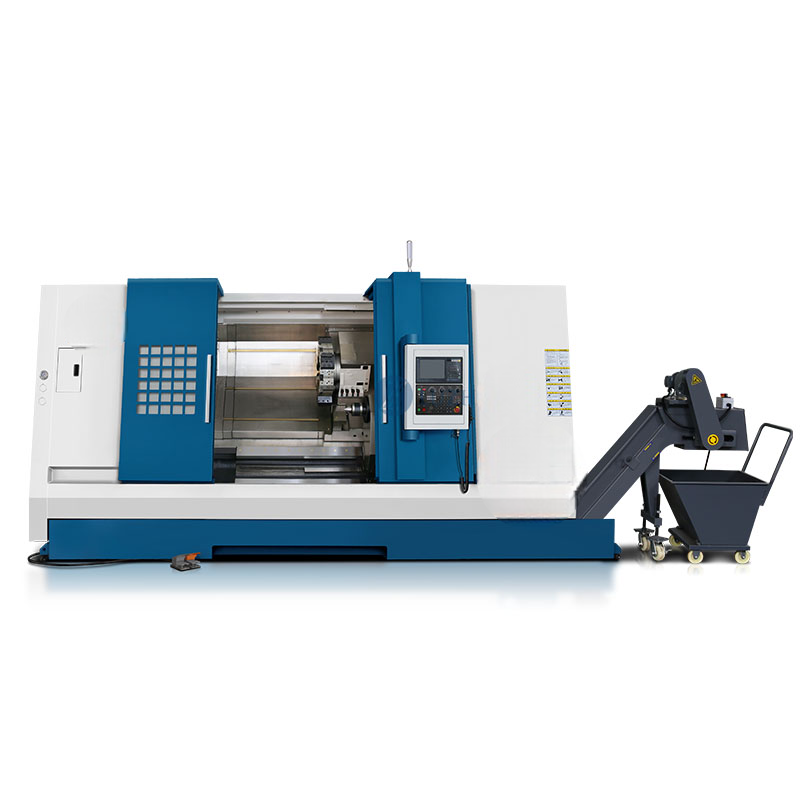

CNC Slant Bed Turn Mill Center

Name: CNC Slant Bed Turn Mill Center
Brand: MAXTURN MACHINERY
Price: 3000000 INR
Availability: InStock

Price 3000000 INR/ Unit

Get a Price/Quote

MOQ : 01 Unit

CNC Slant Bed Turn Mill Center Specification

Product Type
CNC Slant Bed Turn Mill Center

General Use
Metal Processing / Industrial Turning and Milling

Material
Cast Iron Body / Hardened Steel

Type
CNC Machine

Capacity
Large (turning diameter up to 400mm or more depending on model)

Weight (kg)
4000-8000 kg

Computerized
Yes

Automatic
Yes

PLC Control
Available

Bar Feeder
Optional

Power Source
Electric

Power Consumption
8-20 kW (Depends on model and configuration)

Rigidity
High

Voltage
380V/415V

Motor
Main Spindle AC Servo Motor

Table Size
Standard as per model specifications

Spindle Speed
50-4000 rpm

Axial Choice
2-4 Axis

Dimension (L*W*H)
Varies by model (typically 3500mm x 1700mm x 1800mm)

Feature
High Precision, Integrated Turning & Milling, Heavy Duty Construction, Chip Conveyor

Color
Blue and White

Lubrication
Automatic Centralized Lubrication

Control System
Siemens / Fanuc / Mitsubishi (as per order)

Chip Conveyor
Automatic with bucket

Turret Type
Servo/Power Turret with live tooling

Tailstock
Programmable (optional)

Chuck Size
8-15 inch (depending on configuration)

Coolant System
Integrated with high-pressure pumps

Rapid Traverse Rate
20-30 m/min

Max Turning Length
700-1500 mm depending on model

Repeatability
0.005 mm

Tool Capacity
8-12 Tools (Turret)

Bed Structure
Slant Bed, Unibody Cast for Vibration Absorption

CNC Slant Bed Turn Mill Center Trade Information

Minimum Order Quantity
01 Unit

Delivery Time
10-15 Days

About CNC Slant Bed Turn Mill Center

A slant bed turn mill center is a high-precision CNC machine that integrates turning and milling operations on a single platform. Featuring a bed tilted at an angle (typically 30 to 60), it excels in rigidity, vibration dampening, and automated chip evacuation, allowing for heavy-duty, multi-axis machining. [1, 2, 3, 4]

High Precision for Demanding Applications

Engineered to deliver repeatability of 0.005 mm, this CNC Slant Bed Turn Mill Center is ideal for industries requiring exceptional accuracy and surface finish. Its slant bed unibody cast construction absorbs vibration, ensuring reliable performance for long production runs. With live tooling, advanced servo/power turrets, and integrated control options, this machine fits the demands of modern workshops handling a variety of metals and complex components.

Enhanced Productivity and Automation

Boost efficiency with advanced features such as automatic chip conveyor, centralized lubrication, and high-pressure coolant system. The machine's programmable tailstock, rapid traverse rate of up to 30 m/min, and optional bar feeder further streamline operations, reducing manual intervention. Designed for easy integration and automated workflows, this solution is perfect for high-volume production environments.

FAQ's of CNC Slant Bed Turn Mill Center:

Q: How does the CNC Slant Bed Turn Mill Center enhance machining accuracy?

A: This machine offers high precision with repeatability up to 0.005 mm, thanks to its rigid unibody cast structure, slant bed design for vibration absorption, and advanced control systems like Siemens, Fanuc, or Mitsubishi. These features ensure consistent and accurate results even during extended operations.

Q: What are the available configurations for chucks and tooling capacity?

A: Depending on the selected model, the CNC Slant Bed Turn Mill Center is available with chuck sizes between 8 and 15 inches and turrets accommodating 8 to 12 tools. The turret supports live tooling, enabling both turning and milling operations within the same setup for enhanced flexibility.

Q: When should the optional programmable tailstock and bar feeder be considered?

A: The programmable tailstock and optional bar feeder are recommended for operations involving longer or bar-type workpieces that require additional support and automated feeding. These features boost productivity by allowing unattended machining and minimizing manual workpiece handling.

Q: Where can this CNC Turn Mill Center be utilized most effectively?

A: This machine is ideally suited for industrial environments such as metalworking shops, manufacturing plants, and engineering workshops. Its robust construction and versatility make it invaluable for processing metals in automotive, aerospace, defense, and general manufacturing sectors.

Q: What is the process for maintaining this CNC machine?

A: Maintenance is simplified by features like automatic centralized lubrication and integrated coolant systems. Regular inspections for coolant levels, tooling condition, and periodic cleaning of the chip conveyor assure reliable, long-term performance with minimal manual intervention.

Q: How does the slant bed construction benefit operation?

A: The slant bed, unibody cast design provides increased structural rigidity and superior vibration absorption during heavy-duty machining. This not only improves machining accuracy and tool life but also supports smooth chip evacuation with the automatic conveyor system.
