Slant Bed CNC Turnmill with Y-Axis

Name: Slant Bed CNC Turnmill with Y-Axis
Brand: MAXTURN MACHINERY
Price: 3000000 INR
Availability: InStock

Price 3000000 INR/ Unit

Get a Price/Quote

MOQ : 1 Unit

Slant Bed CNC Turnmill with Y-Axis Specification

Product Type
Slant Bed CNC Turnmill with Y-Axis

General Use
Precision Metal Turning and Milling

Material
Hardened Alloy Steel, Cast Iron Bed

Capacity
Turning Diameter up to 300 mm, Turning Length up to 650 mm

Weight (kg)
3500 - 4800 kg

Power Source
Electric

Power Consumption
Approximately 15-25 kW (depending on configuration)

Voltage
380V / 415V / 440V (customizable)

Table Size
Not applicable (uses bed and chuck system)

Spindle Speed
3000 - 4500 RPM (variable)

Axial Choice
Y-Axis

Dimension (L*W*H)
Approx. 3800 mm x 1700 mm x 2100 mm

Color
Blue and White

Max Bar Capacity
Up to 65 mm (with bar feeder)

Max Swing Over Bed
400 mm

Max Machining Length
650 mm

Coolant System
Integrated, High Pressure

Axis Configuration
X/Y/Z + C-Axis

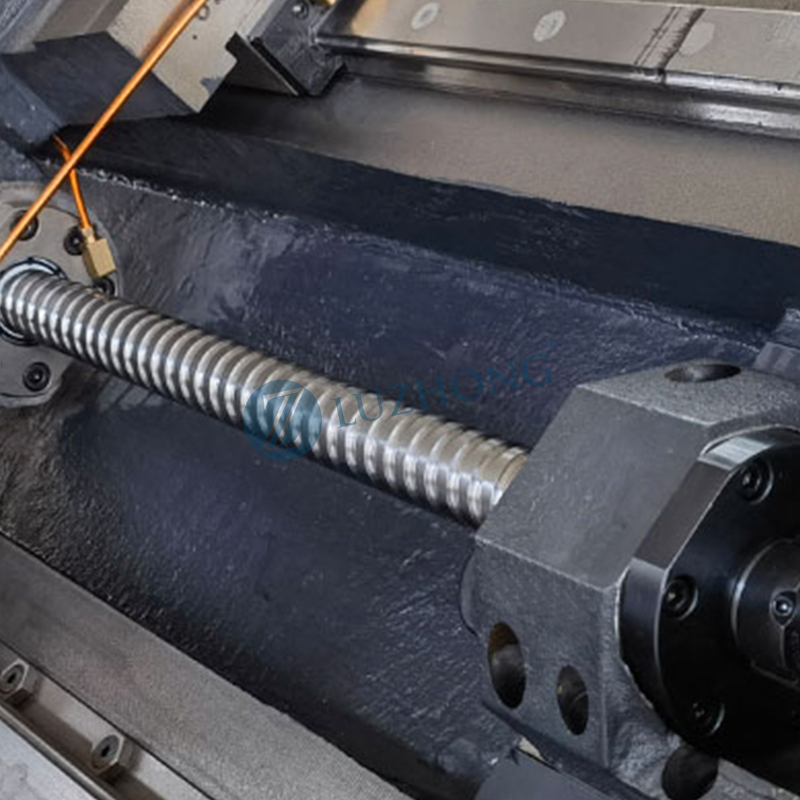

Rapid Traverse Rate (X/Y/Z)
24/12/24 m/min

Main Spindle Motor Power
7.5 kW - 15 kW (varies by model)

Chip Conveyor
Automatic, Included

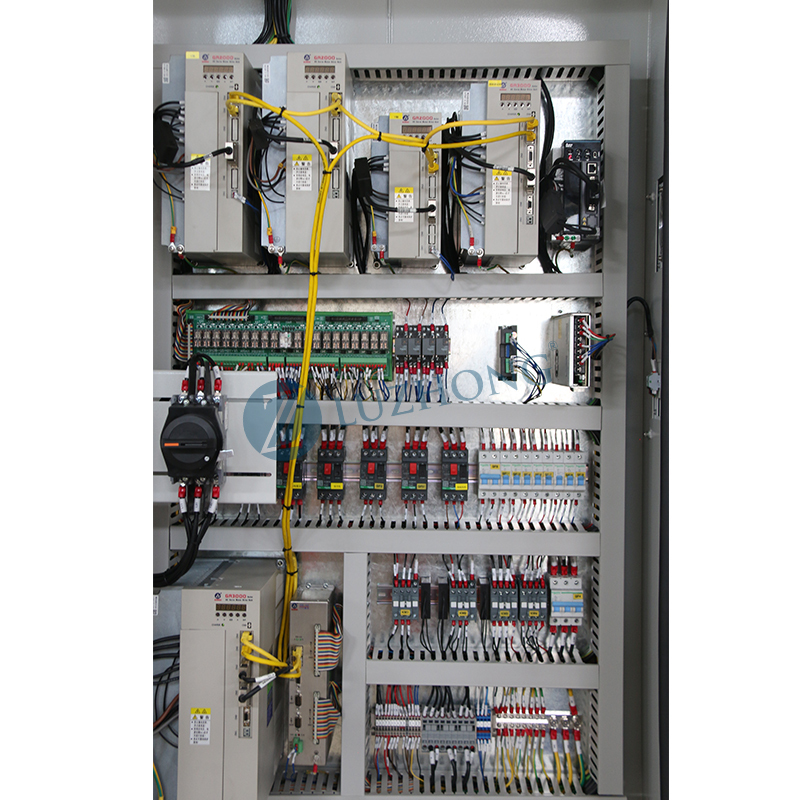

Control System
CNC Fanuc / Siemens / Mitsubishi

Live Tooling
Yes, for milling/drilling operations

Chuck Size
200 mm / 250 mm (Selectable)

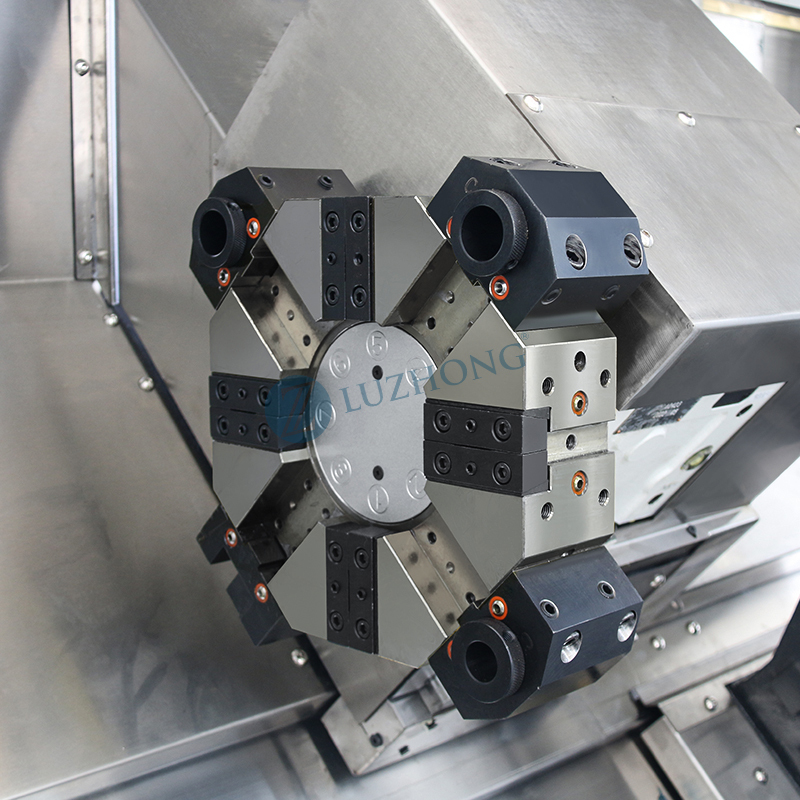

Number of Tools (Turret)
8/12 Station Turret

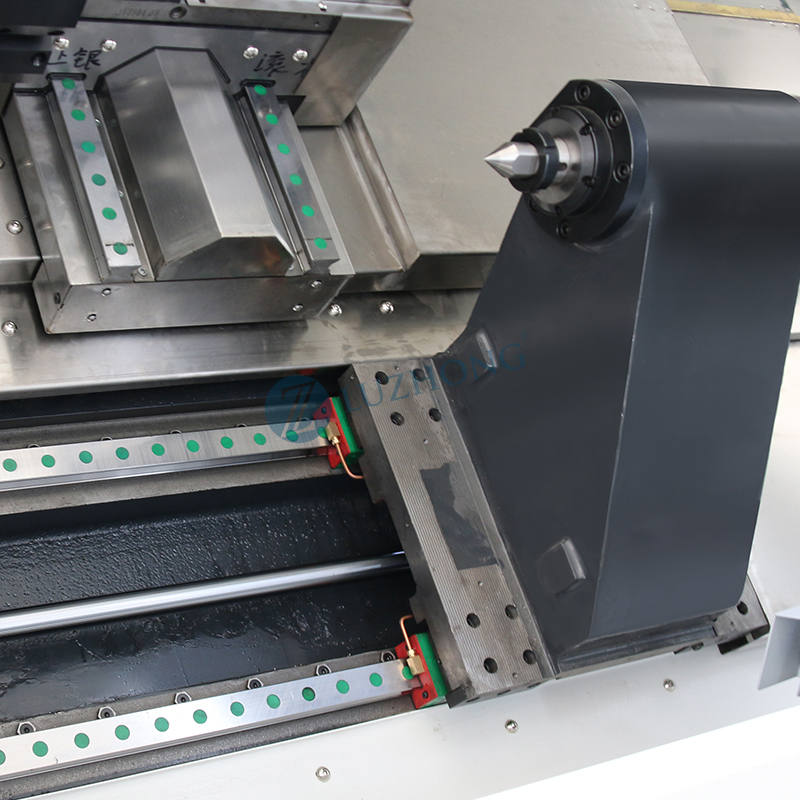

Tailstock
Programmable (optional)

Repeatability
0.005 mm

Slant Bed CNC Turnmill with Y-Axis Trade Information

Minimum Order Quantity
1 Unit

Packaging Details
WOODEN BOX AND STEEL CONTAINER PACKING

Main Domestic Market
All India

About Slant Bed CNC Turnmill with Y-Axis

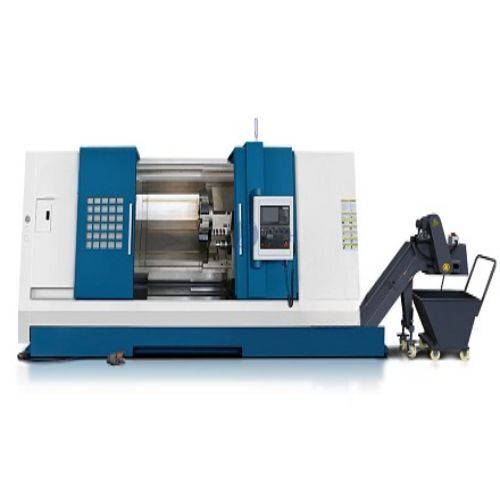

A slant bed CNC turn-mill machine with a Y-axis is an advanced metal-cutting center featuring an inclined cast base, live milling tools, and off-center vertical tool movement. It performs turning, drilling, and complex milling in a single setup. [1, 2, 3, 4, 5, 6]

Advanced Multi-Axis Capability

With X, Y, Z, and C-Axis configurations, this CNC turnmill enables simultaneous turning and milling processes, significantly increasing productivity and enabling the machining of intricate parts in a single setup. The addition of the Y-axis supports more complex geometries and off-center milling operations.

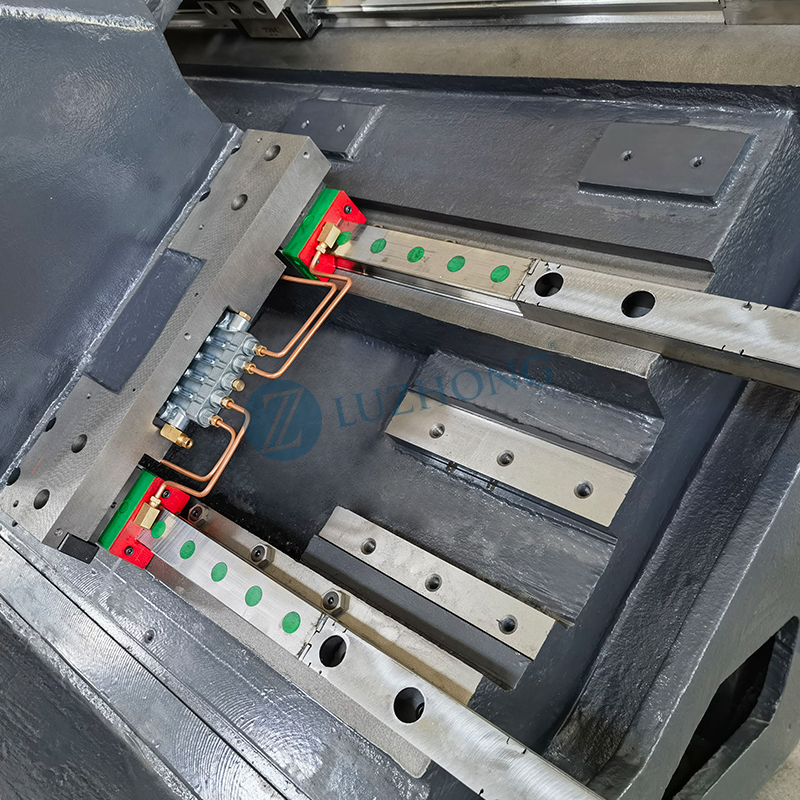

High Performance and Precision

Powered by a 7.5 to 15 kW spindle motor and high-precision servo motors, the machine achieves spindle speeds from 3000 to 4500 RPM and repeatability of 0.005 mm. The optimized slant bed structure enhances rigidity, ensuring consistent, vibration-free performance in demanding industrial environments.

Efficient Automation Features

This turnmill is fully automatic and computerized, featuring an integrated, high-pressure coolant system, automatic chip conveyor, and optional programmable tailstock and bar feeder. These features streamline production workflows, minimize downtime, and reduce manual intervention, making it ideal for high-volume operations.

FAQ's of Slant Bed CNC Turnmill with Y-Axis:

Q: How does the Y-axis benefit machining operations on this CNC turnmill?

A: The inclusion of the Y-axis allows for off-center milling and drilling, enabling the machine to produce more complex part geometries in a single setup. This reduces secondary operations and enhances overall manufacturing efficiency.

Q: What types of materials can be machined with this turnmill?

A: The machine is designed to handle a variety of metals, including hardened alloy steel, thanks to its robust cast iron bed and high rigidity. It is ideal for precision metal turning and milling applications.

Q: When should I select the optional programmable tailstock or bar feeder?

A: Choose the programmable tailstock when machining longer workpieces for added support and accuracy. The automatic bar feeder is recommended for continuous or high-volume production as it streamlines material feeding and reduces operator workload.

Q: Where can this CNC turnmill typically be installed?

A: It is suited for machine shops, manufacturing plants, and precision engineering workshops. The customizable voltage options (380V/415V/440V) make it adaptable to various industrial settings in India and globally.

Q: What is the process for changing tools on the turret?

A: The machine uses an 8 or 12 station turret, allowing for quick and efficient tool changes. The CNC control system manages tool selection and positioning, which minimizes downtime and enhances multi-tasking capabilities.

Q: How does the integrated coolant system and chip conveyor improve usage?

A: The high-pressure coolant system supports optimal cutting temperatures and chip removal, while the automatic chip conveyor efficiently removes metal chips, maintaining a clean work area and prolonging tool life.

Q: What are the main benefits of using this CNC turnmill with Y-axis?

A: Key benefits include enhanced multi-tasking capabilities, high machining accuracy, reduced setup times, minimal manual intervention, and the ability to manufacture complex parts efficiently in a single setup.
