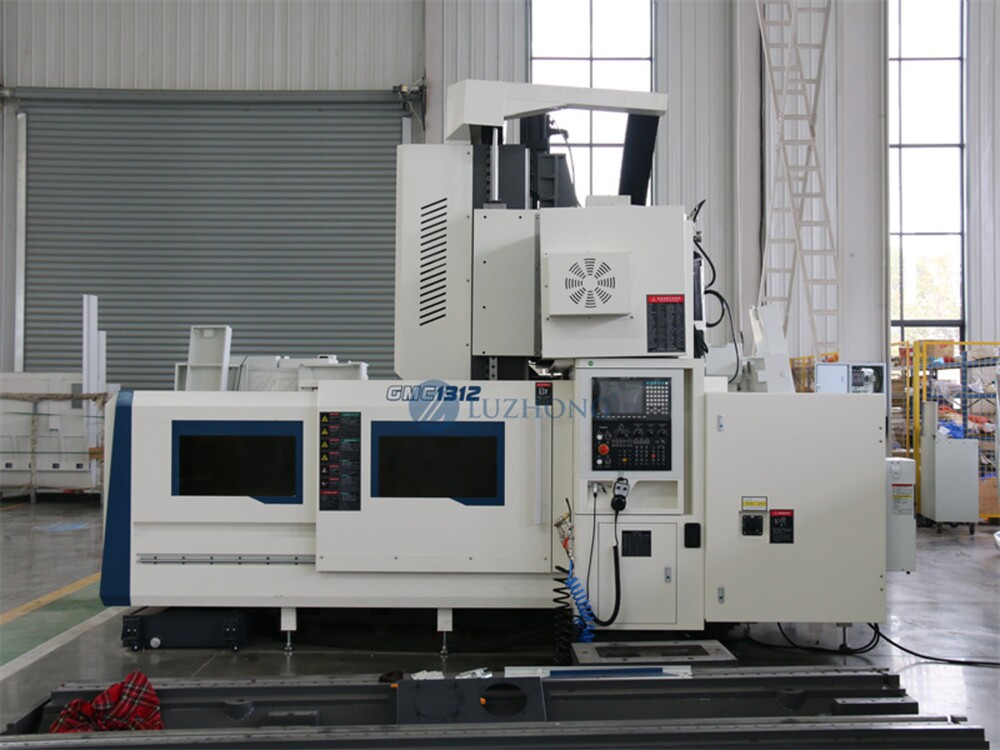

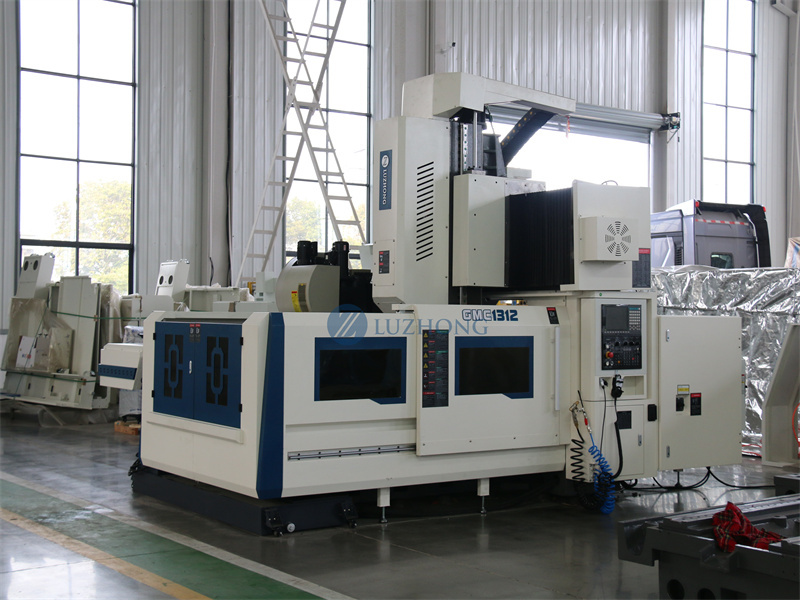

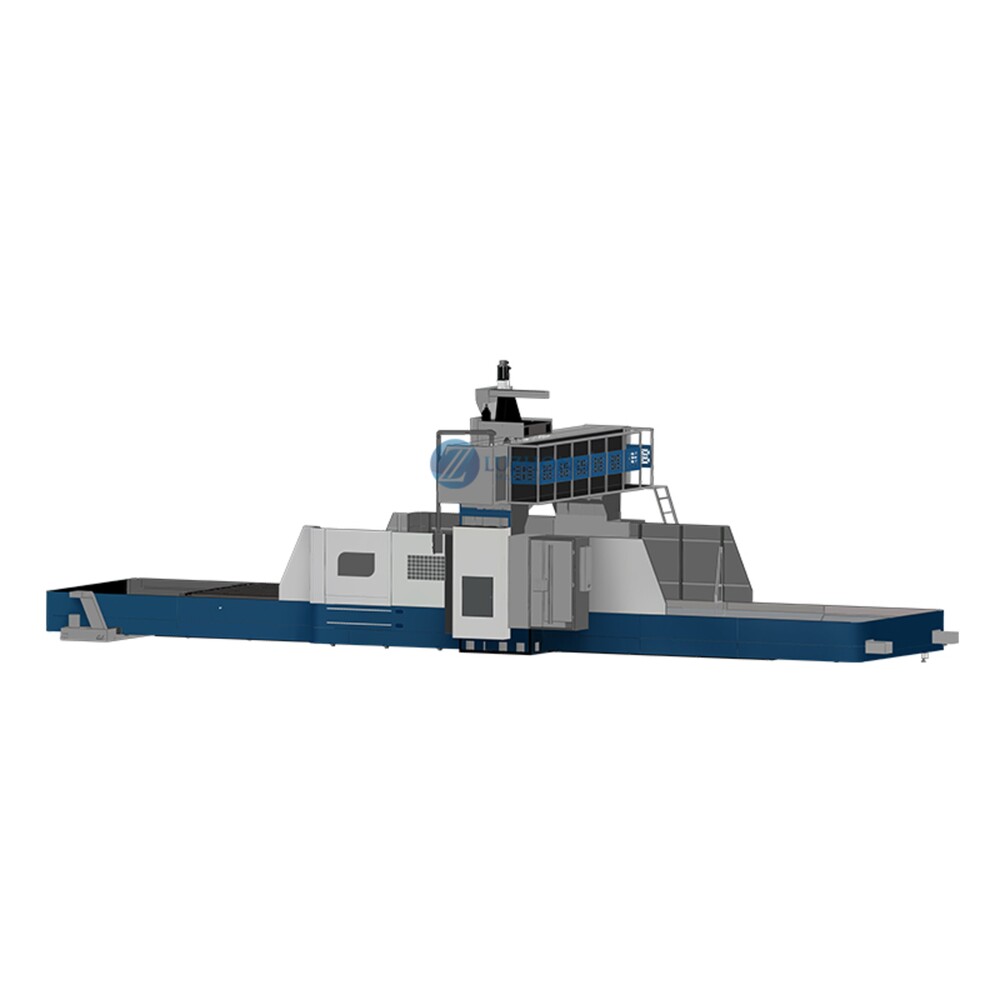

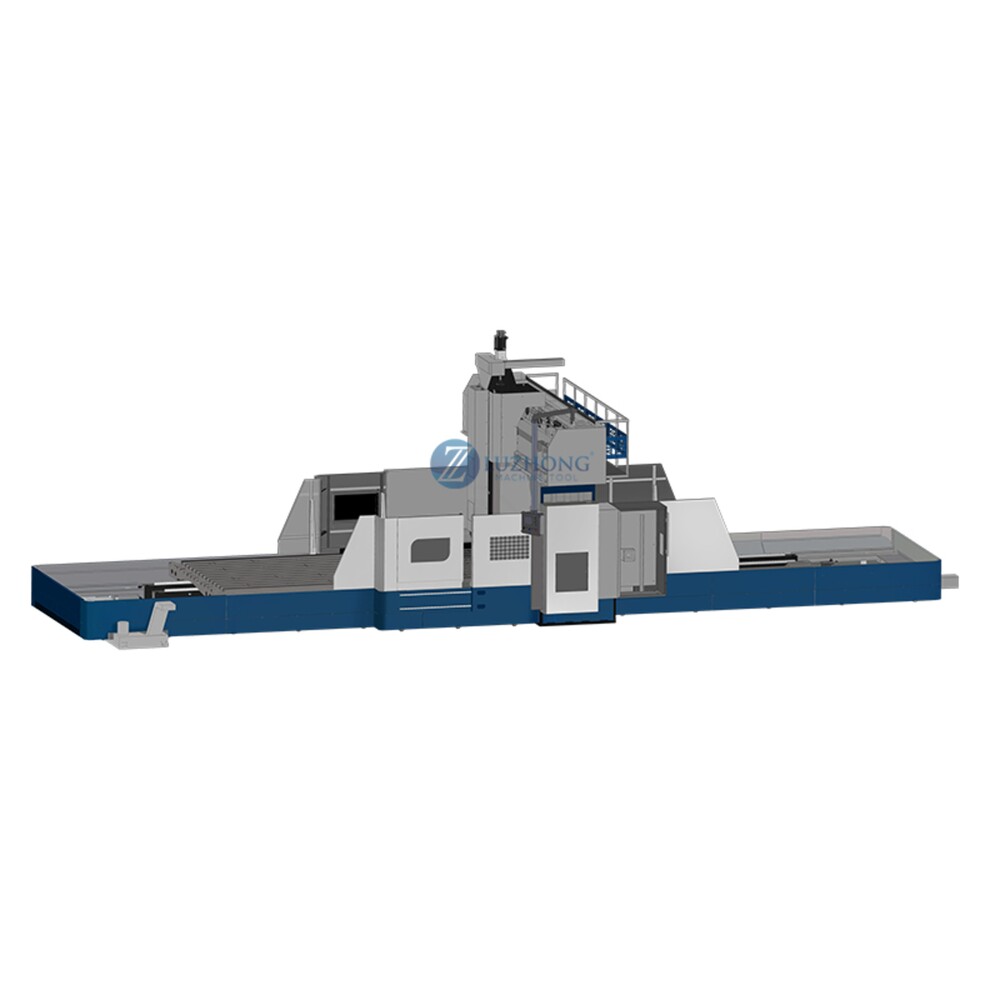

Gantry Milling Center

Name: Gantry Milling Center
Brand: MAXTURN MACHINERY
Price: 8000000 INR
Availability: InStock

Price 8000000 INR/ Number

Get a Price/Quote

MOQ : 1 Number

Gantry Milling Center Specification

Product Type
Gantry Milling Center

General Use
Heavy Duty Milling of Large Workpieces

Material
Cast Iron Body with Alloy Components

Type
Other

Capacity
Suitable for large-scale machining

Weight (kg)
10,000 kg - 50,000 kg (model dependent)

Power Source
Electric

Power Consumption
Highly Efficient, Depends on Model

Voltage
380V/415V (customizable)

Table Size
Customizable-Standard: 2000 x 6000 mm or larger

Spindle Speed
4000 - 8000 rpm (Variable per requirement)

Axial Choice
3/4/5 Axis Variants

Dimension (L*W*H)
Large Scale-Varies by model, e.g., 10000 x 4000 x 3500 mm

Color
Blue & White (Standard)

Lubrication System
Centralized Automatic

Lighting
Internal LED Lighting

Positioning Accuracy
0.005 mm or better (Depending on model)

Repeatability
0.003 mm

Coolant System
Integrated Flood and Through-Spindle Coolant

Travel (X/Y/Z Axis)
Range from 3000/2000/1000 mm to custom sizes

Safety Features
Full Enclosure, Door Interlock, Emergency Stop, Overload Protection

Application
Aerospace, Railways, Shipbuilding, Heavy Machinery Industries

Automatic Tool Changer (ATC)
24/32/40 Station (optional)

Chip Removal
Automatic Chip Conveyor

Operator Interface
Color LCD Touchscreen, USB Interface

Program Memory
Extensible via USB/CF Card/Ethernet

Installation
Requires Rigid Foundation and Proper Leveling

Customizable Options
Table Size, Spindle Power, Axis Configuration, ATC Capacity, Probing Systems

Maximum Table Load
Up to 20,000 kg or higher

Control System
CNC Controller (Fanuc/Siemens/Mitsubishi/Common Brands)

About Gantry Milling Center

A gantry milling machine is a large-scale, high-precision industrial tool featuring a bridge-shaped frame (the gantry) that spans a long, stationary worktable. It is primarily designed to cut, shape, and drill massive or heavy workpieces such as aerospace components and large engine blocks by moving the cutting head across multiple axes while the material remains perfectly stable

Built for Heavy-Duty Precision

Designed to tackle demanding machining operations, this Gantry Milling Center excels with its cast iron body, customizable table size, and variable spindle speed. It supports oversized workpieces, offering a maximum table load of up to 20,000 kg or more. Its rigid structure and high repeatability guarantee stable, accurate performance in every application.

Intelligent Operator Interface

A color LCD touchscreen ensures intuitive operation, while data transfer is effortless with USB, CF Card, or Ethernet interfaces. These smart features streamline program management, making it easy for operators to load, modify, and execute CNC programs swiftly and securely, no matter the complexity of tasks at hand.

Customizable to Fit Your Needs

Flexibility is at the core of this Gantry Milling Center. Customers can tailor the machine to their application, adjusting the table size, spindle power, axis configuration (3/4/5 axis), and ATC capacity. Optional probing systems, internal LED lighting, and coolant delivery systems further enhance versatility and workflow efficiency.

FAQ's of Gantry Milling Center:

Q: How can the Gantry Milling Center be customized for specific applications?

A: The Gantry Milling Center offers extensive customization options, including table size, spindle power, axis configuration (3/4/5 axis), ATC station capacity, and the integration of probing and coolant systems. This ensures suitability for diverse machining needs in heavy industries.

Q: What safety features are included in this milling center?

A: Safety is paramount with a full enclosure, door interlocks, emergency stop, overload protection, and internal LED lighting. These features protect operators and maintain a safe working environment during high-volume, heavy-duty machining.

Q: What is the typical process for installation and setup?

A: Installation requires a rigid, level foundation to support the weight and ensure accuracy. Once in place, technicians will connect power (380V/415V), configure the controller, calibrate axes, and test machine functions before commencing production.

Q: When should centralized automatic lubrication be used?

A: The built-in centralized automatic lubrication system operates throughout machine use, ensuring that all vital moving components receive consistent lubrication. This minimizes wear and extends the lifespan of the milling center with minimal operator oversight.

Q: Where is this Gantry Milling Center commonly used?

A: These machines are commonly found in aerospace, railway, shipbuilding, and heavy machinery manufacturing facilities across India and internationally, where large-scale, high-precision milling operations are essential.

Q: What are the major benefits of this Gantry Milling Center?

A: Key benefits include high positioning accuracy (up to 0.005 mm), repeatability, automated chip removal, robust load capacity, efficient program management, and significant adaptability-making it ideal for machining large or complex components with consistency and reliability.
