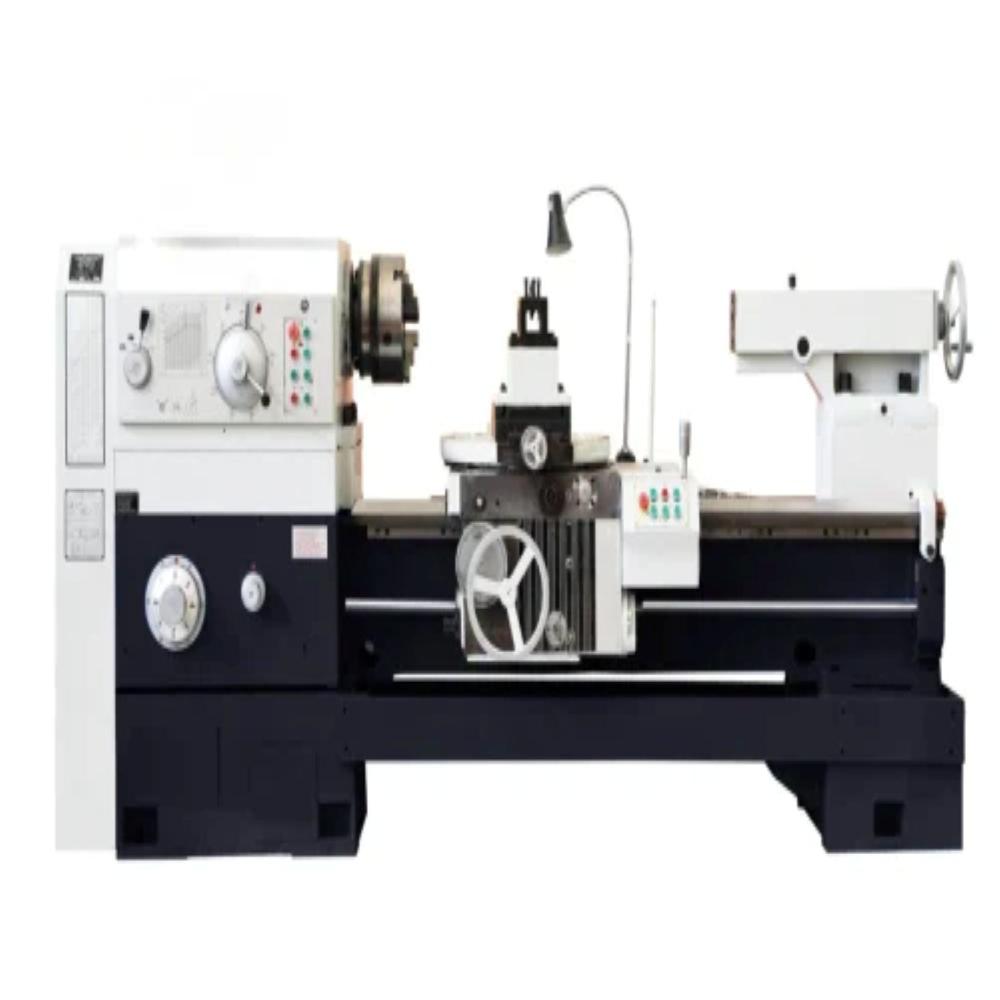

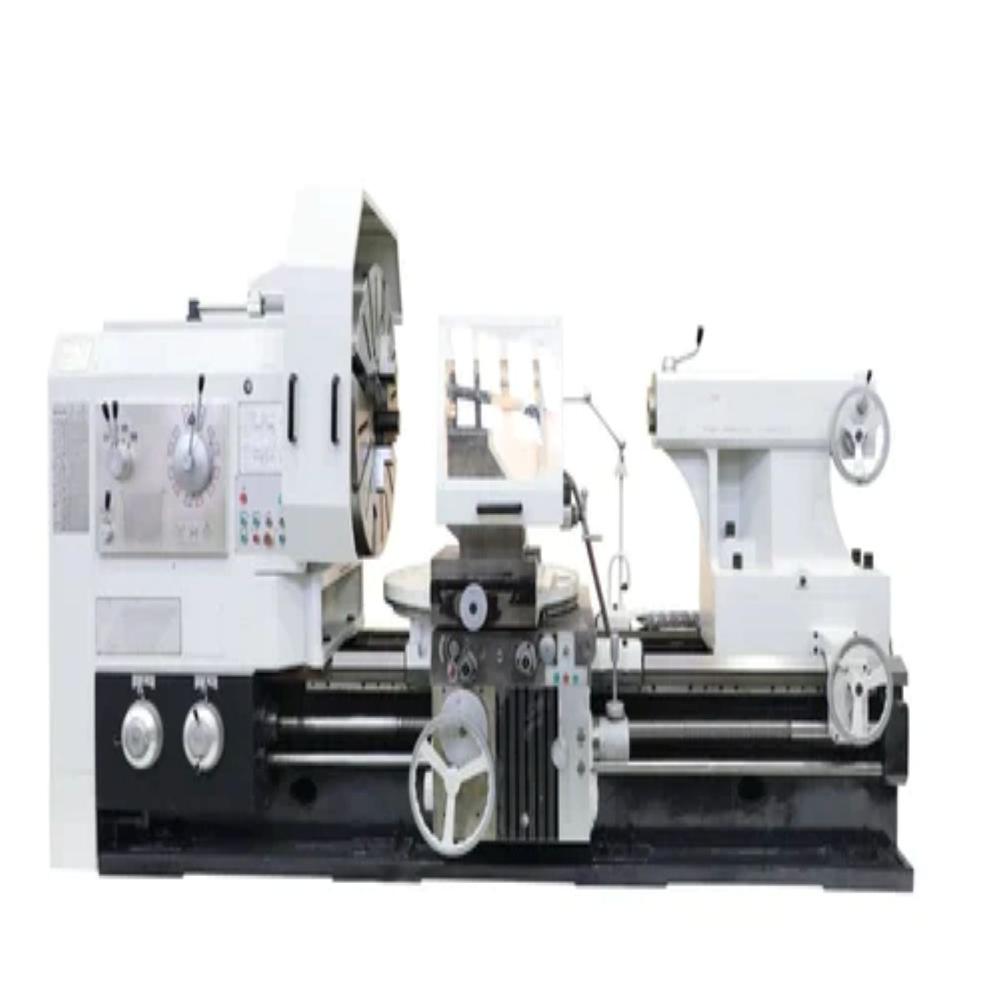

CNC Sphere Turning Lathe Machine

Name: CNC Sphere Turning Lathe Machine
Brand: MAXTURN MACHINERY
Price: 4500000.0 INR
Availability: InStock

Price 4500000.0 INR/ Piece

Get a Price/Quote

MOQ : 1 Piece

CNC Sphere Turning Lathe Machine Specification

Product Type
CNC Sphere Turning Lathe Machine

General Use
Turning Steel, Brass, Copper, Aluminum Spheres

Material
Cast Iron Base, Hardened Steel Components

Type
Other

Capacity
Up to 300 mm Sphere Diameter

Weight (kg)
Approx. 1650 kg

Computerized
Yes

Automatic
Yes

Power Source
Electric

Power Consumption
3-5 kW

Voltage
380-415 V

Table Size
CNC Controlled; Varies by Model

Spindle Speed
Variable up to 2000 rpm

Axial Choice
X, Z Axis

Dimension (L*W*H)
Approximately 2200 x 1400 x 1600 mm

Color
Standard Industrial Grey/Blue

Application
Precision Sphere and Ball Turning for Valves, Bearings, and Industrial Use

Coolant System
Integrated

Maximum Turning Diameter
300 mm

Safety Features
Emergency Stop, Overload Protection

Control System
Siemens/Fanuc/Mitsubishi (based on configuration)

Screen Display
7-inch CNC Touch Panel

Repeatability
0.01 mm

Drive Method
Servo Drive

Tailstock
Hydraulic/Manual

Lubrication System
Automatic

Chuck Size
250 mm (3-Jaw Hydraulic Chuck)

Tool Turret
4-Station Automatic

Positioning Accuracy
0.02 mm

Maximum Turning Length
250 mm

Swing Over Bed
400 mm

About CNC Sphere Turning Lathe Machine

Swing Over Bed	500-1800 mm
Turning Length	150 mm
Bed Type	Flat Bed
Chuck Size	315-1200mm
Spindle Bore	105 mm
Controller Brand	Fanuc
Automation Level	Manual

Product Description:-

There lathes are suitable mainly for turning internal and external cylindrical, Conical and other swing surfaces as well as various metric, inch, module and diametric pitch threads.

They are can also be used for broaching oil grooves and keyways. 1. The side wall of bed is constructed with double-rip plates. And the shape of internal ribs is of box type and bevel ribs combination.

The rigidity is higher than that of ordinary lathes. The precision is stable. And these lathes can carry out strong force cutting. 2.

On apron, there is a device, operated by a single level, used for rapid traverse of the carriage. Spindles braking and rotating direction change is controlled by hydraulic system, or by hand operation, all to users choice. 3.

The saddle guide way is glued by TSF soft belt wear resisting materials. 4. On users demand, we can equip the lathe with automatic feeding mechanism.

The top slide can be used independently for turning of short cone. In combination with longitudinal feeding, it can also turn long taper surface

Additional Information:

Packaging Details: machine wooden packaging and steel container packaging

High-Precision Sphere Turning Capabilities

This CNC sphere turning lathe is engineered to deliver exceptional accuracy and repeatability, making it perfect for producing precision steel, brass, copper, and aluminum spheres. Its advanced control systems paired with servo-driven axes enable intricate sphere profiles with smooth surface finishes, essential for applications such as valves and bearings.

Advanced Automation and User Interface

Operators enjoy an intuitive 7-inch CNC touch panel to streamline setup and programming. Automatic tool turret changes, servo drive mechanisms, and digital controls minimize manual intervention, saving time and reducing the risk of errors during complex turning operations.

Robust Construction and Safety

Constructed with a high-rigidity cast iron base and hardened steel components, this lathe is designed for heavy-duty industrial use. The integrated safety features, including emergency stop and overload protection, ensure reliable operation and operator security in dynamic workshop environments.

FAQ's of CNC Sphere Turning Lathe Machine:

Q: How does the CNC Sphere Turning Lathe Machine ensure precision during operation?

A: The machine achieves high precision through its servo drive system, automatic lubrication, high repeatability of 0.01 mm, and positioning accuracy of 0.02 mm. The integrated 4-station automatic tool turret and digital controls also contribute to maintaining consistent quality and accuracy.

Q: What materials can the lathe process when turning spheres?

A: This CNC lathe is engineered to handle a wide range of materials, including steel, brass, copper, and aluminum. Its rigid construction and powerful spindle make it suitable for both soft and hard metal sphere turning applications.

Q: When should the integrated coolant and lubrication systems be used?

A: The automatic lubrication and integrated coolant systems operate continuously during machining. They keep the cutting area cool, reduce tool wear, and ensure smooth surface finishes, especially during extended or high-speed turning tasks.

Q: Where is this CNC sphere turning lathe machine commonly used?

A: Typically, this machine is adopted by manufacturers and suppliers involved in producing precision spheres for valves, bearings, and other industrial components. It's widely used in industries requiring exacting standards and repeatable results.

Q: What is the process for setting up this lathe for a new sphere-turning job?

A: Operators select the sphere parameters via the CNC touch panel, load the workpiece into the hydraulic chuck, choose the suitable tool in the automatic turret, and initiate the program sequence provided by the Siemens, Fanuc, or Mitsubishi control system. The machine then manages precise sphere turning based on the input data.

Q: What are the main benefits of the 3-jaw hydraulic chuck and automatic tool turret?

A: The 3-jaw hydraulic chuck provides fast, secure clamping for various sphere blanks, enhancing workflow efficiency. The automatic tool turret enables switching between tools seamlessly, which reduces setup time and boosts productivity.

Q: How does the machine prioritize operator safety?

A: Safety is ensured with features like an emergency stop button, overload protection, and rigid protective construction. These measures minimize risks associated with high-speed, heavy-duty CNC operations.
