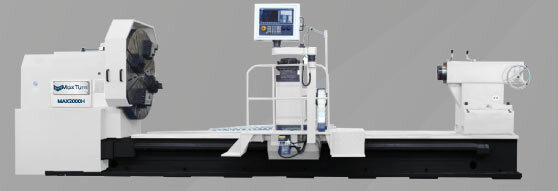

Extra Heavy Duty CNC Lathe

Price 8500000.0 INR/ Unit

Get a Price/Quote

MOQ : 1 Unit

Extra Heavy Duty CNC Lathe Specification

Product Type
Heavy Duty CNC Lathe

General Use
Metal Turning / Heavy Machining

Material
Cast Iron Body / Alloy Steel Bed, Cast Iron Bed, Hardened Guideways

Type
CNC Lathe, Horizontal CNC Lathe

Capacity
Max Swing Over Bed 800 mm, Max Turning Length up to 2000 mm

Weight (kg)
4500 kg

Computerized
Yes, Yes

Automatic
Yes, Fully Automatic

PLC Control
Available, Siemens/Fanuc (User Option)

Bar Feeder
Optional, Available (Optional)

Power Source
Electric, Electric

Power Consumption
15 kW

Rigidity
High, High Rigidity Bed Structure

Voltage
380 V / 415 V

Motor
Main Spindle AC Servo Motor, Main Spindle Motor, 15 HP

Table Size
Customizable (dependent on model)

Spindle Speed
50 - 1200 RPM

Axial Choice
2 Axis / 3 Axis

Dimension (L*W*H)
4800 mm x 1900 mm x 2200 mm

Feature
Heavy duty, Precision, Stable Structure, High Performance, Precision Machining, Heavy Loading, Fully Enclosed Guards

Color
Standard Industrial Grey with Blue Accents, Blue & White

Max Workpiece Weight
1000 kg

Chuck Size
250 mm (10")

Tailstock
Hydraulic/Manual (User Option)

Lubrication System
Automatic Centralized

Controller System
Fanuc/SIEMENS CNC Controller

Coolant System
Integrated with Machine

Max Turning Diameter
500 mm

Rapid Traverse Rate
12 m/min (X/Z axes)

Turret
8-Station Tool Turret

Guideways
Hardened & Precision Ground

Bed Width
400 mm

Repeatability
0.01 mm

Turning Length
1500 mm

Thread Cutting
Standard Metric/Imperial Threads

Extra Heavy Duty CNC Lathe Trade Information

Minimum Order Quantity
1 Unit

Payment Terms
Cash Against Delivery (CAD), Cash on Delivery (COD), Cash in Advance (CID)

Supply Ability
10 Units Per Month

Delivery Time
5-7 Days

Main Domestic Market
All India

About Extra Heavy Duty CNC Lathe

Discover glorious precision and savings with the Extar Heavy Duty CNC Lathe, equipped for the best machining results. Engineered with a lustrous 250 mm chuck, 8-station tool turret, and optional hydraulic tailstock, it ensures scarce chances for errors. Redeem unparalleled repeatability of 0.01 mm, integrated coolant, automatic lubrication, and a bed width of 400 mm for heavy loads up to 1000 kg. Choose Fanuc or SIEMENS controllers and enjoy fully enclosed guards and customizable table size. Optimal for heavy-duty, high-precision industrial applications with robust energy savings.

Features, Applications & Usage

The Extar Heavy Duty CNC Lathe stands out with its high-rigidity bed, precision-ground guideways, and integrated coolant system, ensuring consistent stability for heavy metal turning. Equipped with a lustrous 8-station turret and automatic lubrication, it thrives in environments demanding high precision such as manufacturing plants, tool rooms, and heavy component workshops. Suitable for both two-axis and three-axis operations, this machine excels in heavy usage and continuous operations, delivering best-in-class metal turning results every time.

Delivery, Packaging & Certifications

Shipped goods are meticulously packaged to prevent damage during transport and maintain machine integrity. Extar ensures swift, reliable goods delivery across India, partnering with trusted transport networks for hassle-free service. The CNC Lathe comes certified for industrial safety and performance, adhering to strict standards for quality. Goods are accompanied by all documentation, ensuring a seamless transition from dispatch to on-site installation-delivering readiness for immediate operation upon arrival.

FAQ's of Extar Heavy Duty CNC Lathe:

Q: How does the Extar Heavy Duty CNC Lathe guarantee precise machining results?

A: The CNC lathe achieves high precision with its 0.01 mm repeatability, hardened guideways, precision-ground bed, and automated lubrication, ensuring accuracy even during continuous heavy-duty operations.

Q: What applications are best suited for this CNC lathe?

A: It is ideal for metal turning, heavy machining tasks, manufacturing component production, and operations requiring precise thread cutting, large workpiece handling, and heavy-duty repeatable machining.

Q: When can I expect delivery of the CNC lathe after placing an order?

A: Delivery timelines depend on order customization and logistics but are typically communicated at the time of order. The company ensures timely dispatch and updates throughout the shipment process.

Q: Where can the Extar Heavy Duty CNC Lathe be installed?

A: The lathe can be installed in industrial settings such as manufacturing plants, tool rooms, fabrication workshops, and any site requiring continuous, heavy, and precision metal machining capabilities.

Q: What benefits does the integrated coolant and lubrication system provide?

A: The integrated systems reduce manual interventions, improve machining accuracy, extend machine lifespan, and minimize downtime, ensuring lustrous efficiency and superior savings.
