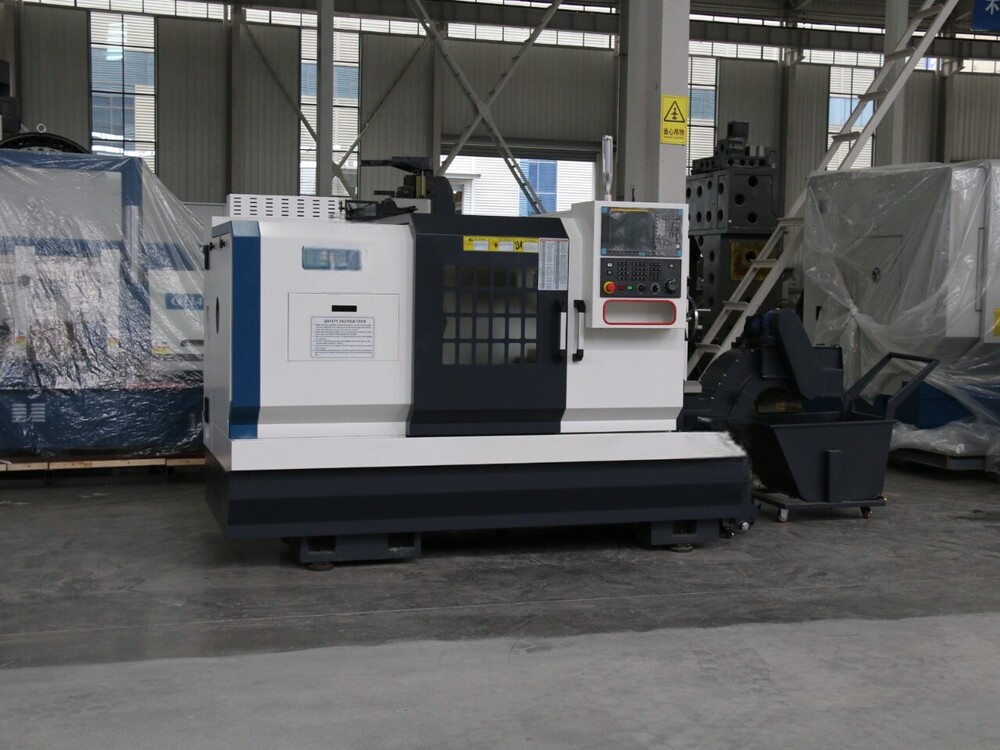

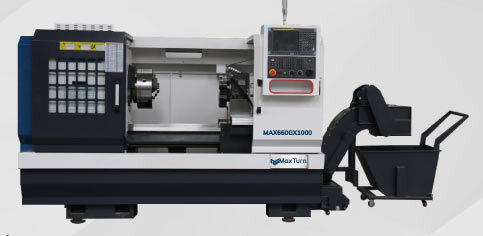

Flat Bed CNC Lathe

Get a Price/Quote

MOQ : 1 Unit

Flat Bed CNC Lathe Specification

Product Type
Flat Bed CNC Lathe

General Use
Turning, facing, threading, boring of various metals

Material
Cast Iron (bed), Alloy steel (spindle), Cast Iron Bed, Hardened Steel Components

Type
CNC Lathe Machine, Horizontal CNC Lathe

Capacity
Max turning diameter 400 mm, max turning length 1000 mm

Weight (kg)
3000 kg

Computerized
Yes, Yes

Automatic
Fully automatic, Yes

PLC Control
Yes, Available

Bar Feeder
Optional, Optional Automatic Bar Feeder

Power Source
Electric, Electric

Power Consumption
7.5 kW

Rigidity
High torsional and bending rigidity, High Rigidity Construction

Voltage
380V / 415V

Motor
Main spindle motor, servo motors for axes, Main Spindle Motor: 7.5 kW

Table Size
Customizable as per requirement

Spindle Speed
Variable, up to 2000 rpm

Axial Choice
2-axis (X, Z)

Dimension (L*W*H)
3200 x 1550 x 1700 mm

Feature
Precise machining, heavy-duty structure, high accuracy, Precision Machining, Stable Performance, Heavy Duty

Color
White & Blue, Grey / Blue (Standard) or Custom

Tailstock
Manual/Automatic (optional)

Bed Width
400 mm

Lubrication System
Automatic Centralized

Max Bar Capacity
50 mm

Control System
GSK / Siemens / Fanuc (optional)

Repeatability
0.005 mm

Coolant System
Equipped

Chuck Size
200 mm

Hydraulic System
Included

Tool Post
4-Position Electric Tool Turret

Minimum Input Air Pressure
0.5 MPa

Threading Range
0.5 - 120 mm

Flat Bed CNC Lathe Trade Information

Minimum Order Quantity
1 Unit

Payment Terms
Cash Against Delivery (CAD), Cash on Delivery (COD), Cash in Advance (CID)

Supply Ability
10 Units Per Month

Delivery Time
5-7 Days

Main Domestic Market
All India

About Flat Bed CNC Lathe

Take advantage of our eminent Flat Bed CNC Lathe-now on Sale! Featuring a lustrous, first-string build, this machine accommodates a 200 mm chuck and boasts repeatability up to 0.005 mm. The high rigidity construction includes a cast iron bed, automatic centralized lubrication, and variable spindle speeds up to 2000 rpm. With GSK, Siemens, or Fanuc control options and a robust 7.5 kW main spindle motor, it's ideal for precise turning, facing, threading, and boring. Available in stylish white & blue or custom colors, this is the latest choice for manufacturers and suppliers seeking reliable performance across diverse metalworking needs.

Versatile Usage and Application Areas

The Flat Bed CNC Lathe is designed for a range of specific uses, including turning, facing, threading, and boring of various metals. Its eminent structure supports tasks in automotive, aerospace, tool rooms, and heavy engineering industries. Used as a horizontal CNC lathe, it excels in precise machining and is ideal for both custom and high-volume production environments. The machine is favored by manufacturers, suppliers, and traders across India for its stability, accuracy, and heavy-duty construction.

Sample Policy, Certifications, and Shipping

Our Flat Bed CNC Lathe sample policy ensures transparency-samples can be evaluated before larger orders. Essential certifications guarantee product quality and reliability. Upon order processing, machines are shipped from our FOB port, with efficient drop-off at your preferred location. We support smooth logistics and timely delivery for both domestic and international clients. Certified and compliant with industry standards, every shipment arrives ready for immediate and effective usage in your facility.

FAQ's of Flat Bed CNC Lathe:

Q: How does the Flat Bed CNC Lathe ensure high accuracy during repetitive operations?

A: The machine boasts a repeatability of 0.005 mm, supported by high torsional and bending rigidity in its cast iron bed construction and precision servo motors, ensuring consistent high-accuracy throughout extensive production cycles.

Q: What materials and processes can be performed with this CNC lathe?

A: The Flat Bed CNC Lathe is suitable for turning, facing, threading, and boring across various metals, including steel, aluminum, and alloys, making it a versatile asset for general machining and specialized tasks.

Q: When should I consider using the automatic bar feeder option?

A: The optional automatic bar feeder is ideal for high-volume or continuous production scenarios, streamlining feeding processes and maximizing operational efficiency.

Q: Where is the machine manufactured and supplied from?

A: This CNC lathe is manufactured, supplied, and traded in India, with a strong reputation for quality in both domestic and international markets.

Q: What is the process for ordering and receiving a sample unit?

A: Order processing for samples is straightforward: place your request, and after order confirmation, the sample unit is shipped promptly from the FOB port with coordinated drop-off to your designated address.

Q: What are the benefits of the automatic lubrication and integrated coolant system?

A: These automated systems maintain optimal machine performance, minimize wear, and extend component lifespan, ensuring smoother and more efficient operation over time.
