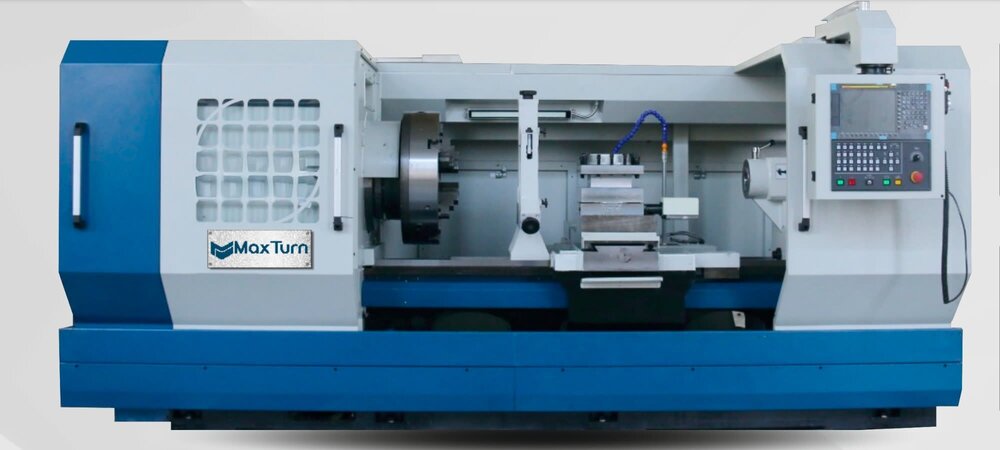

CNC Pipe Threading Machine

Name: CNC Pipe Threading Machine
Brand: MAXTURN MACHINERY
Price: 3000000 INR
Availability: InStock

Price 3000000 INR/ Unit

Get a Price/Quote

MOQ : 1 Unit

CNC Pipe Threading Machine Specification

Product Type
CNC Pipe Threading Machine

General Use
Industrial pipe threading, manufacturing, oil and gas, mechanical workshops

Material
Mild steel, alloy steel, stainless steel pipes

Type
Other

Capacity
Handles pipes up to 8 inches (varies by model)

Weight (kg)
3500 - 5000 kg (model dependent)

Computerized
Yes

Power Source
Electric

Power Consumption
Approximately 7.5 kW - 15 kW (depending on model)

Voltage
380V / 415V / 220V (as per requirement)

Table Size
Customizable (depends on model)

Spindle Speed
Variable, typically 30~1500 rpm

Axial Choice
X and Z axis with precision servo control

Dimension (L*W*H)
Approx. 3000mm x 1600mm x 1700mm

Color
White and Blue

Chuck Size
315 mm

Thread Range
1

Display
Color LCD Touchscreen

Lubrication Type
Automatic

Coolant System
Integrated

Maximum Pipe Length
1500 mm

Spindle Bore
105 mm

Protection
Full Enclosure with Safety Interlock

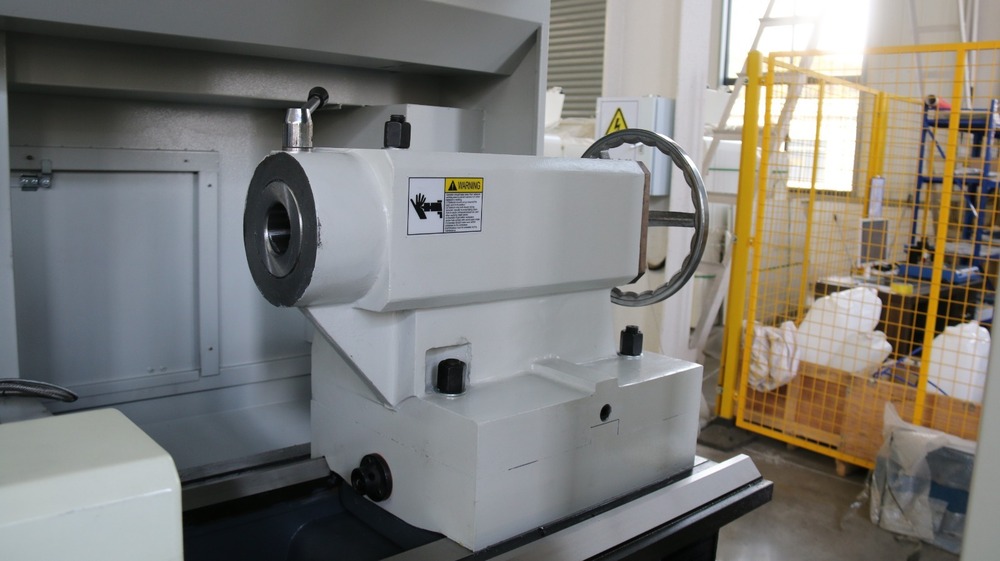

Tailstock Travel
250 mm

Clamping Type
Hydraulic Chuck Optional

Control System
FANUC / Siemens / GSK (optional)

Repeatability
0.01 mm

Maximum Swing Over Bed
630 mm

CNC Pipe Threading Machine About

A CNC pipe threading lathe machine isan advanced, computer-controlled lathe specially designed for machining high-precision internal and external threads on long, heavy pipes and tubes. It features an extra-large spindle bore and a double-chuck system, allowing long workpieces to pass through the center for steady, precise turning.

Superior Safety and Performance

Equipped with a full enclosure and advanced safety interlock system, this CNC Pipe Threading Machine ensures safe operation for users. Its high-grade hydraulic chuck clamping and integrated coolant and lubrication systems minimize wear and ensure consistent performance even under demanding industrial conditions. Precision control via X and Z axis servo motors delivers repeatable and accurate threading, boosting operational efficiency in any manufacturing setting.

Versatile and Customizable Operation

With support for a variable spindle speed (30~1500 rpm), interchangeable control systems (FANUC, Siemens, GSK), and adjustable table sizes, this pipe threading machine can be tailored for specific industrial needs. Its adaptable voltage and electric power options, customizable chuck size and pipe length capabilities, and color touchscreen interface make it suitable for various pipe materials and workshop applications across India.

FAQ's of CNC Pipe Threading Machine:

Q: How does the full enclosure with safety interlock enhance machine operation?

A: The full enclosure with safety interlock ensures operator safety by preventing access to moving parts during machine operation. This safety feature significantly reduces the risk of accidents and protects users from exposure to debris, while maintaining an optimal operating environment.

Q: What types of pipes and materials can this CNC Pipe Threading Machine handle?

A: This machine is engineered to thread mild steel, alloy steel, and stainless steel pipes, accommodating pipe diameters up to 8 inches, depending on the selected model. It is ideal for various industrial sectors, including manufacturing, oil and gas, and mechanical workshops.

Q: When should the automatic lubrication and integrated coolant systems be used?

A: The automatic lubrication and coolant systems are activated during machine operation. These features are designed to run continuously to reduce friction, heat, and wear on essential components, ensuring consistent performance and prolonging machine life.

Q: Where can the CNC Pipe Threading Machine be installed and operated?

A: The machine is suitable for installation in manufacturing plants, mechanical workshops, and industrial facilities across India. It runs on electric power and supports multiple voltage inputs (220V, 380V, or 415V), making it compatible with most industrial setups.

Q: What is the process for setting up the machine control system?

A: Users can choose between FANUC, Siemens, or GSK control systems during procurement. The selected system is pre-installed and configured by the manufacturer, enabling a streamlined setup. The color LCD touchscreen provides an intuitive interface for programming and monitoring operations.

Q: How does the machine ensure precision and repeatability during threading?

A: Equipped with precision X and Z axis servo controls and a repeatability tolerance of 0.01 mm, the machine guarantees accurate and consistent threading results for every cycle. This precision is ideal for high-spec industrial applications where quality and reliability are critical.
