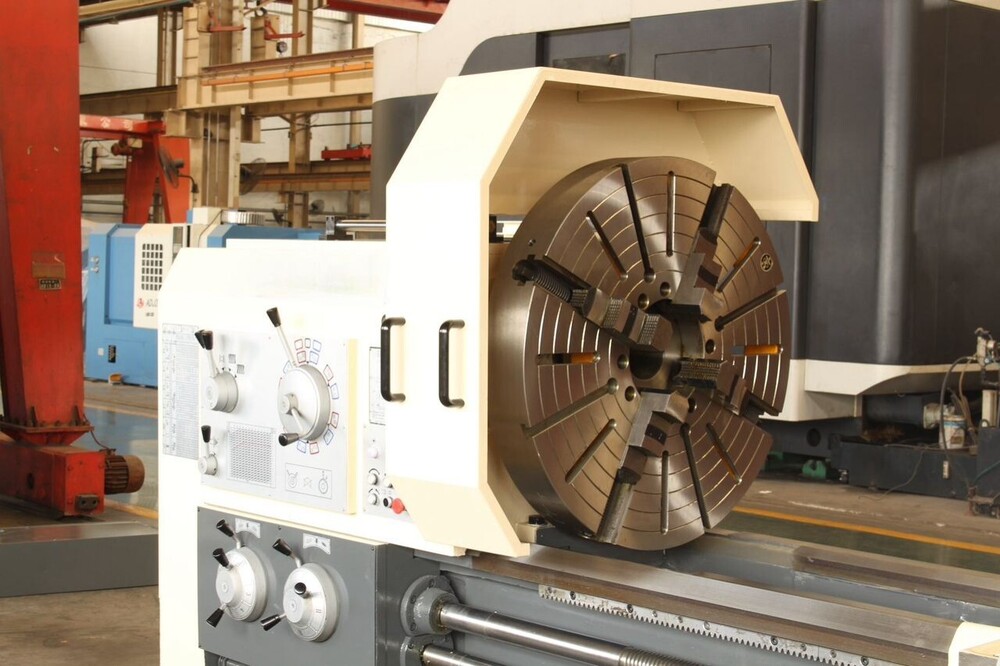

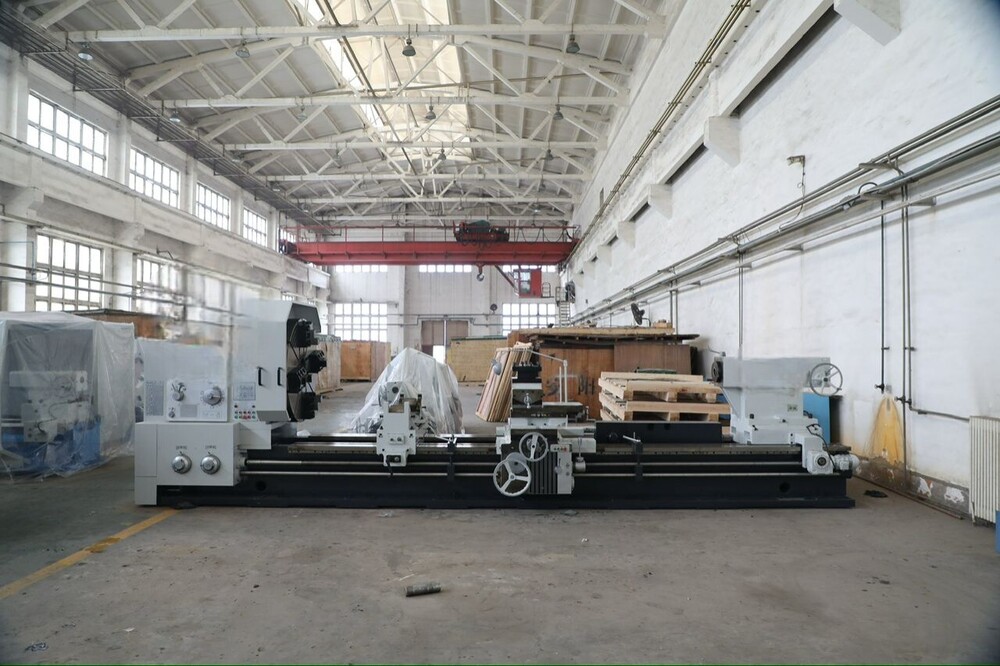

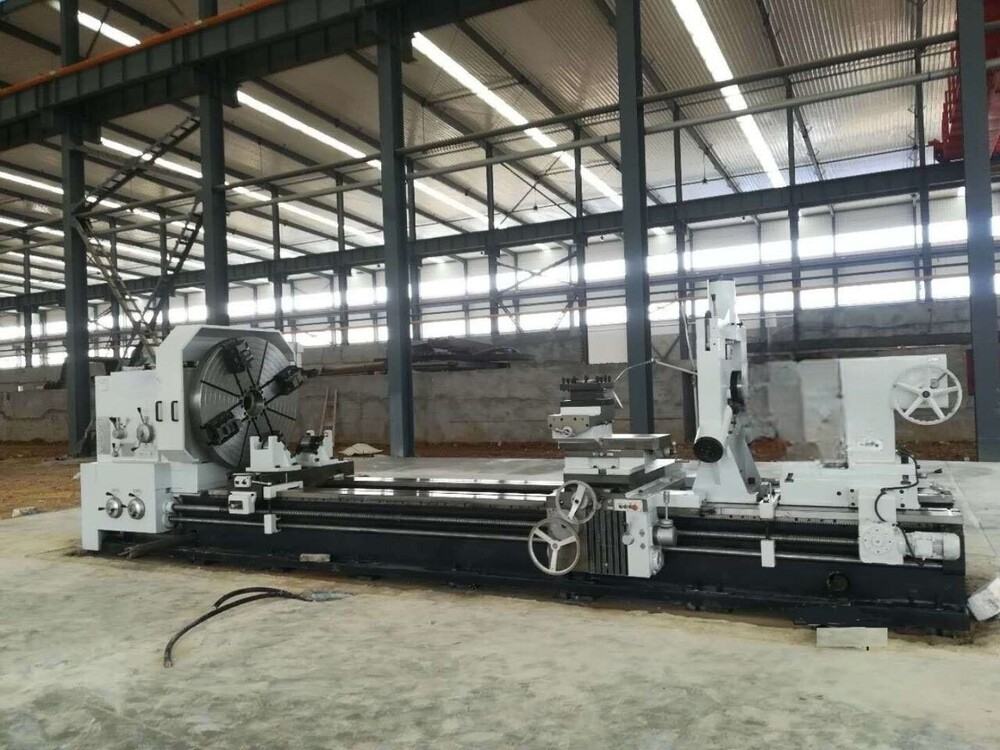

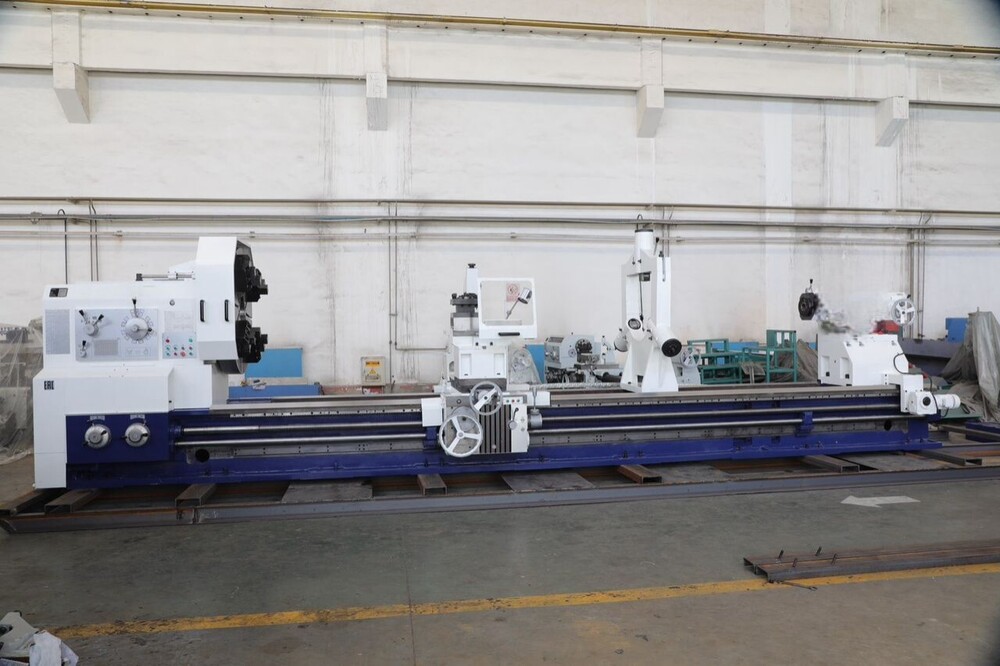

Roll Turing CNC Machine

Name: Roll Turing CNC Machine
Brand: MAXTURN MACHINERY
Price: 8000000 INR
Availability: InStock

Price 8000000 INR/ Unit

Get a Price/Quote

MOQ : 1 Unit

Roll Turing CNC Machine Specification

Product Type
CNC Turning Machine

General Use
Industrial machining of rolls and shafts

Material
Mild Steel, Cast Iron, Hard Alloys (for machining)

Type
Heavy Duty CNC Lathe Machine

Capacity
Dia: 200-800 mm / Max Length: 3000-5000 mm (model dependent)

Weight (kg)
Approx. 6000 - 12000 kg

Computerized
Yes

Automatic
Yes

PLC Control
Equipped with PLC based control

Bar Feeder
Available (Automatic)

Power Source
Electric

Power Consumption
Approx. 15-30 kW (Depending on model/config)

Rigidity
High structural rigidity for stable machining

Voltage
380V/415V, 3 Phase

Motor
AC Servo Motor

Table Size
Customizable (Typically up to 4000 mm bed length)

Spindle Speed
50-1500 RPM (Variable; model specific)

Axial Choice
2 Axis / 3 Axis CNC (configurable)

Dimension (L*W*H)
Approx. 6000 x 2000 x 1800 mm (varies with model)

Feature
High precision, heavy duty, automatic operation, user friendly interface

Color
White / Grey (Standard)

Coolant System
Integrated, recirculating with filtration

Chuck Size
250-500 mm (as per job requirement)

Tool Turret
8/12 station automatic

Drive System
Precision ball screw drive

Max Turning Diameter
500-800 mm

Repeatability Accuracy
0.01 mm

Operating Interface
Touchscreen HMI

Bed Type
Slant/Flat bed (configurable)

Lubrication System
Automatic centralized lubrication

Max Workpiece Length
3000-6000 mm

Enclosure
Full safety guard with interlock

Controller Brand
Siemens/ Fanuc/ Mitsubishi/ GSK (as per order)

Spindle Bore
100-200 mm (as per machine size)

Tailstock
Motorized / Manual

About Roll Turing CNC Machine

The Roll Turing CNC Machine delivers crackerjack performance for industrial machining, featuring inestimable precision with repeatability accuracy of 0.01 mm. Highlighted by intelligent PLC control and brilliant touchscreen HMI, it offers reduced downtime and simplified operation. Available in variable chuck sizes (250-500 mm) and configurable bed types, this heavy-duty lathe covers clearance ranges for diverse rolls and shafts. With automatic lubrication, integrated coolant, and a robust drive system, it ensures steadfast machining. Clearance models with Siemens, Fanuc, Mitsubishi, or GSK controllers are available as per order, underlining exceptional quality for every industrial need.

Versatile Features and Industry Applications

The Roll Turing CNC Machine stands out with configurable spindle bore (100-200 mm), customizable axial choice (2/3 Axis), and a precision ball screw drive. Equipped for both heavy-duty and intricate tasks, it is ideal for machining rolls and shafts in steel, paper, and engineering industries. Its fully enclosed safety guard and motorized/manual tailstock bring enhanced reliability, making it a go-to solution for consistent, large-scale production across a variety of materials including mild steel, cast iron, and hard alloys.

Sample Policy, Domestic Market & Certifications

We offer a transparent sample policy based on the proposal amount agreed upon. Upon initiation of shipment, customers are promptly informed, and machines are shipped securely across India, our main domestic market. Each unit comes with appropriate manufacturer certifications, verifying both quality and safety standards. Shipment schedules and product quality are consistently monitored to ensure customer satisfaction and reliability. Timely delivery and certified excellence are our top priorities for every CNC machine order.

FAQ's of Roll Turing CNC Machine:

Q: How does the Roll Turing CNC Machine enhance machining accuracy?

A: The machine ensures high machining accuracy with a repeatability of 0.01 mm, supported by features like precision ball screw drive and automatic lubrication, reducing deviations during long production runs.

Q: What controller brands are available for this CNC machine?

A: You can choose from Siemens, Fanuc, Mitsubishi, or GSK controllers, as per your specific order requirements.

Q: Where can the Roll Turing CNC Machine be used?

A: It is designed for industrial machining of rolls and shafts, making it suitable for steel, paper, engineering, and other heavy industries that require precise turning operations.

Q: What is the process for customizing the machine's specifications?

A: Specifications like chuck size, bed type, spindle bore, axial configuration, and tool turret can be selected based on job requirements before placing an order, ensuring a tailored solution for your production needs.

Q: When will shipment be initiated after placing an order?

A: Once the proposal amount is agreed upon and formalities are completed, the shipment is scheduled and shipped promptly. Customers are notified with all shipment details.

Q: What are the main benefits of its automatic and computerized features?

A: The automatic tool turret, centralized lubrication, and user-friendly touchscreen HMI maximize efficiency, while computerized controls ensure seamless operation, reduced manual intervention, and higher productivity.
