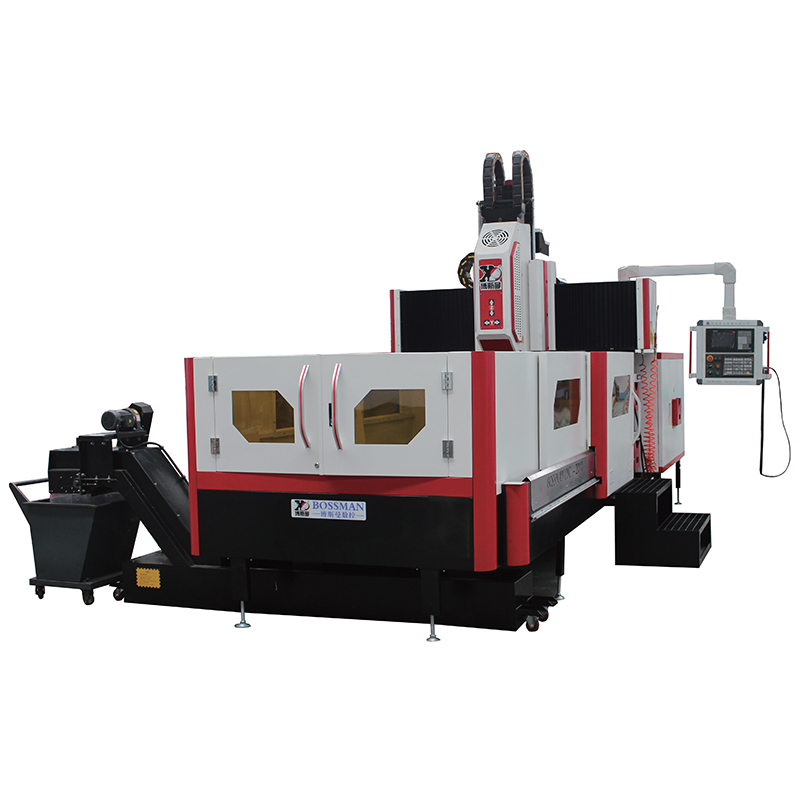

Fixed Beam Drilling&Milling Machine

Name: Fixed Beam Drilling&Milling Machine
Brand: MAXTURN MACHINERY
Price: 10000000 INR
Availability: InStock

Price 10000000 INR/ Number

Get a Price/Quote

MOQ : 1 Number

Fixed Beam Drilling&Milling Machine Specification

Product Type
Fixed Beam Drilling & Milling Machine

General Use
Industrial Drilling and Milling Operations

Material
Mild Steel, Cast Iron

Type
CNC Machine Tool

Capacity
Heavy-Duty Milling and Drilling

Weight (kg)
7000-9000 kg

Computerized
Yes, CNC Controlled

Automatic
Fully Automatic

PLC Control
Provided

Bar Feeder
Not Included

Power Source
Electric

Power Consumption
Depends on Model (typically 10-20 kW)

Rigidity
High

Voltage
380V/415V

Motor
High Precision Servo Motor

Table Size
Customized/Varies by Model (e.g., 1500 x 3000 mm)

Spindle Speed
Variable, up to 6000 rpm

Axial Choice
3-Axis or 4-Axis (Optional)

Dimension (L*W*H)
4200 x 2500 x 2600 mm (example)

Feature
High Precision, Fully Enclosed, Heavy-Duty Frame

Color
Standard White & Red/Black

Positioning Accuracy
0.01 mm

Travel X/Y/Z
3000/1500/700 mm (customizable)

Spindle Taper
BT40/BT50

Controller Brand
Siemens/Fanuc/Mitsubishi (as per order)

Software Supported
G-code, Custom CNC Programs

Enclosure
Full Metal Sheet with Safety Windows

Maximum Workpiece Weight
1500 kg

Tool Changer
Automatic, 16~24 Tools (Optional)

Workpiece Clamping
Manual/Automatic

Lubrication
Automatic Centralized Lubrication

Oil Mist Collector
Optional

Repeatability
0.005 mm

Coolant System
Integrated with High Pressure

Ambient Temperature Range
5C - 40C

Machine Structure
Fixed Gantry, Moving Table

About Fixed Beam Drilling&Milling Machine

A fixed beam drilling and milling machine is a heavy-duty, gantry-style CNC machine. It utilizes a rigidly mounted overhead beam and an adjustable worktable, allowing the spindle to move dynamically in all three dimensions. This design provides exceptional structural stability and high-precision processing for large or heavy workpieces

Unmatched Precision and Performance

Engineered for accuracy, the Fixed Beam Drilling & Milling Machine achieves positioning precision of 0.01 mm and repeatability of 0.005 mm. The rigid, fixed gantry structure ensures stability even during heavy-duty operations. Its CNC system, from trusted brands such as Siemens, Fanuc, or Mitsubishi, allows for seamless automation and integration with your production flow.

Designed for Demanding Industrial Applications

This machine boasts a customizable work area and table size to suit various industrial applications, accommodating workpieces up to 1500 kg. Its automatic tool changer (16-24 tools) and high-pressure integrated coolant system enhance efficiency and versatility in both drilling and milling processes-making it an asset for any manufacturing environment.

FAQ's of Fixed Beam Drilling&Milling Machine:

Q: How does the Fixed Beam Drilling & Milling Machine ensure high precision during operations?

A: The machine is designed with a heavy-duty, fixed gantry and moving table, offering positioning accuracy of 0.01 mm and repeatability of 0.005 mm. Coupled with a high-precision servo motor and rigid frame, this structure minimizes vibrations and enhances machining precision.

Q: What types of workpieces and materials can the machine handle?

A: It is built for versatility and can process materials like mild steel and cast iron. The machine can handle workpieces weighing up to 1500 kg and is well-suited for large-scale industrial drilling and milling operations requiring robust capacity.

Q: When should I choose the manual or automatic workpiece clamping option?

A: Choose manual clamping for simple jobs or when flexibility in fixturing is needed. Automatic clamping is recommended for high-volume, repetitive production, as it saves time and increases safety during machine operation.

Q: What is the process for changing tools on this machine?

A: The machine is equipped with an automatic tool changer that can house 16 to 24 tools, depending on your configuration. Tool changes are executed via the controller-compatible with Siemens, Fanuc, or Mitsubishi systems-reducing downtime and enhancing workflow efficiency.

Q: Where can I install this machine, and what are the environment requirements?

A: Install the machine in workshops where the temperature is maintained between 5C and 40C, with proper ventilation for safety and cooling. The machine operates on 380V or 415V electricity and requires a stable foundation due to its weight (7000-9000 kg).

Q: How does the integrated coolant and lubrication system benefit the machining process?

A: The high-pressure integrated coolant system effectively manages heat generated during machining, increasing tool life and ensuring high-quality surface finishes. The automatic centralized lubrication system keeps critical moving parts lubricated, minimizing maintenance and maximizing uptime.

Q: What advantages does the fully enclosed frame with safety windows provide?

A: A fully enclosed metal frame ensures operator safety by containing debris and coolant, while safety windows offer clear visibility during operation. This design improves the working environment and supports compliance with industrial safety standards.
